Parker Rectus 7000系列用于流體輸送應用熱管理快換接頭
Parker Rectus 7000 Series Quick Coupling for Fluid Handling Applications
該系列快換接頭，公稱通徑9/12/16/20mm，用于冷卻的應用，如鐵路機組，目前可供材料為黃銅或者不銹鋼。
Parker Rectus派克7000系列快換接頭目前可供四種不同公稱通徑的產品，該系列的最大特點是性能可靠，主要是使用密封來實現的。當與陰接頭連接后，在閥芯打開之前，陽接頭已經進行密封。在管路成功連接后，有雙密封作用，從而確保連接的可靠性。Parker Rectus 7000 系列的陰接頭與陽接頭，有額外的外部密封圈，適合戶外的應用，因此當連接成功后，快換的鎖緊系統，能夠完全的防止灰塵或者鹽霧進入到系統內。Parker Quick Connect Coupling Series 7000 is available in four different nominal diameters. It stands out for the very high level of reliability with respect to the seal, as the plug already seals in the coupling before the valves open when engaging the coupling and seals the connection reliably with a double seal when connected.Series 7000 has an additional external seal in the coupling and plug specifically for outdoor applications, so that the locking system is completely protected from dirt and spray water when connected.
Parker's 7000 Series Quick Connect Coupling
Quick Coupling for Fluid Handling Applications, Series 7000

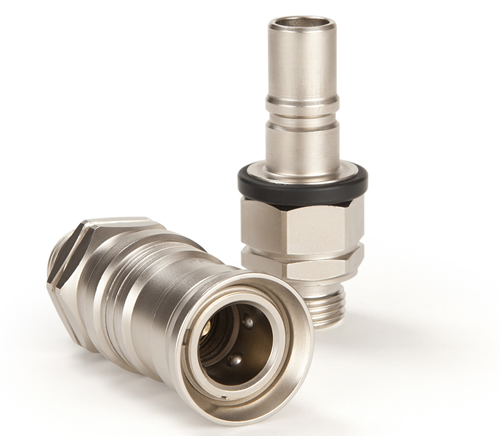

Parker's Quick Connect Coupling Series 7000 is available in four different nominal diameters. It stands out for the very high level of reliability with respect to the seal, as the plug already seals in the coupling before the valves open when engaging the coupling and seals the connection reliably with a double seal when connected.
Series 7000 has an additional external seal in the coupling and plug specifically for outdoor applications, so that the locking system is completely protected from dirt and spray water when connected.
市場：
- 工業
- 鐵路
- 電子冷卻
- 交通
特點/優點：
- 額外的外部鎖緊系統密封圈能夠適合用于外部應用
- 防塵蓋，帶不銹鋼的鋼鎖，可咨詢訂貨
- 防濺設計，即在連接過程中沒有水排放
- 連接時雙重密封保護
性能特點
標稱直徑 (DN) 9, 12, 16, 20
閥門 是
型號 雙截止
軟管內徑 10, 16, 19, 25
外徑 (MM) 27 高達 54
材料 - 密封件 EPDM
最低工作溫度: (°C) -40
MAXIMUM WORKING TEMPERATURE (°C) 150
最大工作壓力 (BAR) 16
應用 軌道交通 - 鐵路
應用：
- 電子元件冷卻
- 流體輸送
- 水和冷卻液管路
- 高流量水應用
LITERATURE AND REFERENCE MATERIALS
- Catalogue Page Parker Rectus Series 7000
- Market Brochure - Transportation Railway
Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Material |
Length (mm) |
7009KBAD18MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
Brass chemical nickel plated |
67 |
7009KBAD18REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
AISI 303 |
67 |
7009KBAO17MED |
Coupling |
Male Thread with front O-ring |
3/8 |
Brass chemical nickel plated |
65 |
7009KBAO17REX |
Coupling |
Male Thread with front O-ring |
3/8 |
AISI 303 |
65 |
7009KBIW17MED |
Coupling |
Female Thread |
3/8 |
Brass chemical nickel plated |
65 |
7009KBIW17REX |
Coupling |
Female Thread |
3/8 |
AISI 303 |
65 |
7009KBTP10MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
84 |
7009KBTP10REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
84 |
7009SBAD18MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
Brass chemical nickel plated |
62 |
7009SBAD18REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
AISI 303 |
62 |
7009SBAO17MED |
Plug |
Male Thread with front O-ring |
3/8 |
Brass chemical nickel plated |
60 |
7009SBAO17REX |
Plug |
Male Thread with front O-ring |
3/8 |
AISI 303 |
60 |
7009SBIW17MED |
Plug |
Female Thread |
3/8 |
Brass chemical nickel plated |
60 |
7009SBIW17REX |
Plug |
Female Thread |
3/8 |
AISI 303 |
60 |
7009SBTP10MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
82 |
7009SBTP10REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
82 |
7012KBAD26MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
Brass chemical nickel plated |
82 |
7012KBAD26REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
AISI 303 |
82 |
7012KBAO21MED |
Coupling |
Male Thread with front O-ring |
1/2 |
Brass chemical nickel plated |
82 |
7012KBAO21REX |
Coupling |
Male Thread with front O-ring |
1/2 |
AISI 303 |
82 |
7012KBIW21MED |
Coupling |
Female Thread |
1/2 |
Brass chemical nickel plated |
82 |
7012KBIW21REX |
Coupling |
Female Thread |
1/2 |
AISI 303 |
82 |
7012KBTP16MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
111 |
7012KBTP16REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
111 |
7012SBAD26MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
Brass chemical nickel plated |
73,5 |
7012SBAD26REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
AISI 303 |
73,5 |
7012SBAO21MED |
Plug |
Male Thread with front O-ring |
1/2 |
Brass chemical nickel plated |
73,5 |
7012SBAO21REX |
Plug |
Male Thread with front O-ring |
1/2 |
AISI 303 |
73,5 |
7012SBIW21MED |
Plug |
Female Thread |
1/2 |
Brass chemical nickel plated |
73,5 |
7012SBIW21REX |
Plug |
Female Thread |
1/2 |
AISI 303 |
73,5 |
7012SBTP16MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
101,5 |
7012SBTP16REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
101,5 |
7016KBAD30MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
Brass chemical nickel plated |
100,5 |
7016KBAD30REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
AISI 303 |
100,5 |
7016KBAO26MED |
Coupling |
Male Thread with front O-ring |
3/4 |
Brass chemical nickel plated |
103 |
7016KBAO26REX |
Coupling |
Male Thread with front O-ring |
3/4 |
AISI 303 |
103 |
7016KBIW26MED |
Coupling |
Female Thread |
3/4 |
Brass chemical nickel plated |
101 |
7016KBIW26REX |
Coupling |
Female Thread |
3/4 |
AISI 303 |
101 |
7016KBTP19MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
125 |
7016KBTP19REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
125 |
7016SBAD30MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
Brass chemical nickel plated |
95,5 |
7016SBAD30REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
AISI 303 |
95,5 |
7016SBAO26MED |
Plug |
Male Thread with front O-ring |
3/4 |
Brass chemical nickel plated |
98,5 |
7016SBAO26REX |
Plug |
Male Thread with front O-ring |
3/4 |
AISI 303 |
98,5 |
7016SBIW26MED |
Plug |
Female Thread |
3/4 |
Brass chemical nickel plated |
97,5 |
7016SBIW26REX |
Plug |
Female Thread |
3/4 |
AISI 303 |
97,5 |
7016SBTP19MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
124,5 |
7016SBTP19REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
124,5 |
7020KBAD36MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
Brass chemical nickel plated |
121 |
7020KBAD36REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
AISI 303 |
121 |
Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Material |
Length (mm) |
7020KBAO33MED |
Coupling |
Male Thread with front O-ring |
1 |
Brass chemical nickel plated |
127 |
7020KBAO33REX |
Coupling |
Male Thread with front O-ring |
1 |
AISI 303 |
127 |
7020KBIW33MED |
Coupling |
Female Thread |
1 |
Brass chemical nickel plated |
127 |
7020KBIW33REX |
Coupling |
Female Thread |
1 |
AISI 303 |
127 |
7020KBTP25MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
146 |
7020KBTP25REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
146 |
7020SBAD36MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
Brass chemical nickel plated |
126,5 |
7020SBAD36REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
AISI 303 |
126,5 |
7020SBAO33MED |
Plug |
Male Thread with front O-ring |
1 |
Brass chemical nickel plated |
132,5 |
7020SBAO33REX |
Plug |
Male Thread with front O-ring |
1 |
AISI 303 |
132,5 |
7020SBIW33MED |
Plug |
Female Thread |
1 |
Brass chemical nickel plated |
130,5 |
7020SBIW33REX |
Plug |
Female Thread |
1 |
AISI 303 |
130,5 |
7020SBTP25MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
152,5 |
7020SBTP25REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
152,5 |
|
