診斷測試儀和附件，使用模擬或CAN傳感器進行測量和記錄，派克測試儀套件包Serviceman Plus

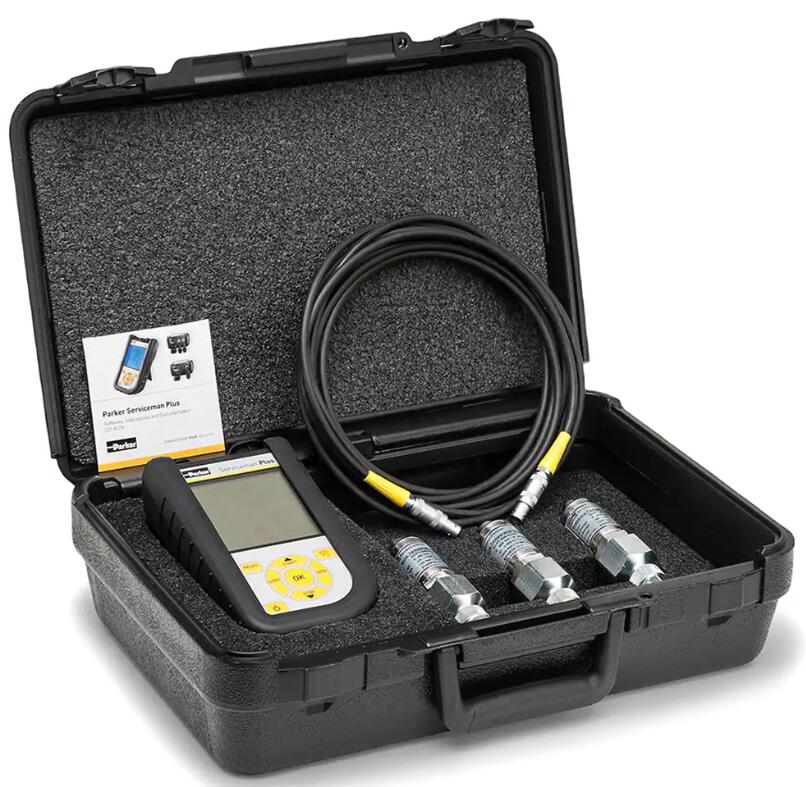

SensoControl Serviceman Plus diagnostic kit
派克 SensoControl Serviceman Plus 診斷測試套件是測量和記錄任何液壓或氣動系統的關鍵系統數據的理想選擇。派克傳感器產品Serviceman Plus是一款堅固，便攜，易于使用的診斷測試儀。派克Serviceman Plus有CAN總線通信和傳統模擬輸入兩種形式可供選擇，可提供2個模擬輸入或CAN接口，最多可連接3個CAN傳感器。該系列緊湊型測試儀可測量壓力，流量，溫度和轉速。可提供各種壓力測試工具包。
CAN型壓力測試套件包括：
- 派克Serviceman Plus測試儀(CAN)
- 設備箱
- 1個或 2個壓力傳感器（可選擇壓力范圍和連接形式）
- 1根或2根傳感器電纜
- CAN Y型電纜（套件中僅有2個壓力傳感器）
- 電源
- 終端電阻
- SensoWin軟件和文檔
- USB連接電纜
- Nano USB存儲 - 1GB
可選套件包擴展包括：其他適配的壓力傳感器，流量傳感器，溫度傳感器，轉速傳感器，電壓轉換器， 電纜（額外訂購）。
模擬型壓力測試套件包括：
- 派克Serviceman Plus測試儀（模擬型）
- 設備箱
- 1個或 2個壓力變送器（可選擇壓力范圍和連接形式）
- 1根或2根傳感器電纜
- 電源
- SensoWin軟件和文檔
- USB連接電纜
- Nano USB 存儲 - 1GB
可選套件包擴展包括： 其他適配的壓力傳感器，流量傳感器，溫度傳感器，轉速傳感器，電壓轉換器， 電纜（額外訂購）。
派克傳感器產品Serviceman Plus是測量，記錄和分析包括系統壓力等多參數測量的工具。多種附件可用于測量流量，流體溫度，電流，電壓和轉速。如需擴展基本壓力測試套件包的功能，請購買這些附加的傳感附件：壓力變送器，流量傳感器，溫度傳感器，轉速傳感器，電壓轉換器，電纜（單獨訂購）。
市場：
- 工業
- 建筑機械
- 模具
- 測試
- 維護和維修，MRO
特點與優勢：
- 壓力套件包可以通過訂購派克傳感附件進行輕松擴展，以充分利用派克Serviceman Plus測試儀的診斷功能。
- 壓力傳感器使用顏色編碼，與壓力范圍相對應，便于可視化管理
- SensoWin軟件允許下載到Windows操作系統進行分析數據
- 簡單直觀的操作
- 適用于測量液壓和氣動系統壓力
應用：
- 工程機械
- 冷卻系統
- 工業液壓系統
- 流體或空氣系統維護和故障排除
- 系統性能優化
- 系統驗證
技術規格：
技術選件： Analog
連接器類型： na
測量范圍1（psi)： na
傳感器類型： (0) Pressure transducers
測量范圍2（psi)： na
診斷儀表類型： 派克Serviceman Plus
存儲器類型： Nano USB閃存盤 - 1GB
電源電壓： 120 Volt AC
軟件： SensoWin
殼體類型： 小型手提箱
應用： 液壓或氣動系統診斷
包括： （1）USB電纜 - 1m
品牌： 傳感控制
部件號 |
傳感器類型 |
技術選件 |
連接器類型 |
測量范圍 1 （ psi) |
測量范圍 2 （ psi) |
PDS4-0-00-00 |
(0) Pressure transducers |
Analog |
na |
na |
na |
PDS4-0-00-00-CAN |
(0) Pressure transducers |
CAN bus |
na |
na |
na |
PDS4-2-01 |
(1) Pressure transducer |
Analog |
PD |
-14.5 to 220 psi (blue) |
na |
PDS4-2-01-01 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-2-01-01-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-2-01-06 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-2-01-06-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-2-01-15 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-2-01-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-2-01-40 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-2-01-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-2-01-60 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-2-01-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-2-01-CAN |
(1) Pressure transducer |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
na |
PDS4-2-06 |
(1) Pressure transducer |
Analog |
PD |
0 to 870 psi (green) |
na |
PDS4-2-06-06 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-2-06-06-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-2-06-15 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-2-06-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-2-06-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-2-06-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-2-06-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-2-06-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-2-06-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 870 psi (green) |
na |
PDS4-2-15 |
(1) Pressure transducer |
Analog |
PD |
0 to 2175 psi (yellow) |
na |
PDS4-2-15-15 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-2-15-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-2-15-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-2-15-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-2-15-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-2-15-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-2-15-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 2175 psi (yellow) |
na |
PDS4-2-40 |
(1) Pressure transducer |
Analog |
PD |
0 to 5800 psi (orange) |
na |
PDS4-2-40-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-2-40-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-2-40-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-2-40-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-2-40-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 5800 psi (orange) |
na |
PDS4-2-60 |
(1) Pressure transducer |
Analog |
PD |
0 to 8700 psi (red) |
na |
PDS4-2-60-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-2-60-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-2-60-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 8700 psi (red) |
na |
PDS4-4-01 |
(1) Pressure transducer |
Analog |
PDP |
-14.5 to 220 psi (blue) |
na |
PDS4-4-01-01 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-4-01-06 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-4-01-15 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-4-01-40 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-4-01-60 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-4-06 |
(1) Pressure transducer |
Analog |
PDP |
0 to 870 psi (green) |
na |
PDS4-4-06-06 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 870 psi (green) |
部件號 |
傳感器類型 |
技術選件 |
連接器類型 |
測量范圍 1 （ psi) |
測量范圍 2 （ psi) |
PDS4-4-06-15 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-4-06-40 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-4-06-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-4-15 |
(1) Pressure transducer |
Analog |
PDP |
0 to 2175 psi (yellow) |
na |
PDS4-4-15-15 |
(2) Pressure transducers |
Analog |
PDP |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-4-15-40 |
(2) Pressure transducers |
Analog |
PDP |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-4-15-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-4-40 |
(1) Pressure transducer |
Analog |
PDP |
0 to 5800 psi (orange) |
na |
PDS4-4-40-40 |
(2) Pressure transducers |
Analog |
PDP |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-4-40-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-4-60 |
(1) Pressure transducer |
Analog |
PDP |
0 to 8700 psi (red) |
na |
PDS4-4-60-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-6-01 |
(1) Pressure transducer |
Analog |
EMA |
-14.5 to 220 psi (blue) |
na |
PDS4-6-01-01 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-6-01-01-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-6-01-06 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-6-01-06-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-6-01-15 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-6-01-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-6-01-40 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-6-01-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-6-01-60 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-6-01-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-6-01-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
na |
PDS4-6-06 |
(1) Pressure transducer |
Analog |
EMA |
0 to 870 psi (green) |
na |
PDS4-6-06-06 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-6-06-06-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-6-06-15 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-6-06-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-6-06-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-6-06-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-6-06-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-6-06-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-6-06-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 870 psi (green) |
na |
PDS4-6-15 |
(1) Pressure transducer |
Analog |
EMA |
0 to 2175 psi (yellow) |
na |
PDS4-6-15-15 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-6-15-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-6-15-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-6-15-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-6-15-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-6-15-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-6-15-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
na |
PDS4-6-40 |
(1) Pressure transducer |
Analog |
EMA |
0 to 5800 psi (orange) |
na |
PDS4-6-40-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-6-40-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-6-40-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-6-40-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-6-40-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 5800 psi (orange) |
na |
PDS4-6-60 |
(1) Pressure transducer |
Analog |
EMA |
0 to 8700 psi (red) |
na |
PDS4-6-60-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
部件號 |
傳感器類型 |
技術選件 |
連接器類型 |
測量范圍 1 （ psi) |
測量范圍 2 （ psi) |
PDS4-6-60-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-6-60-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 8700 psi (red) |
na |
|
fcg.cnmec@parkerdistribution.com.cn
