OPW Autolok快速接頭
Autolok Series Quick Disconnect Fittings & Couplings
可達到更高安全水平的自動鎖定接頭裝置
OPW Autolok® 快速接頭是一種自動鎖定的接頭裝置，在流體管線連接方面可達到更高的安全水平，且使用更加方便。Autolok®的定機構設置在對接臂的內部，只要輕輕一推就能使連接臂鎖合，除非操作人員采取解鎖的動作，否則接頭將始終保持固定、閉合的位置。不需要任何夾具、銷釘或按鈕之類的東西。Autolok®采用享有的Twin-Kam™爪掣機構將陽端接頭更可靠地固定在陰端接頭上，以防止意外的松動。

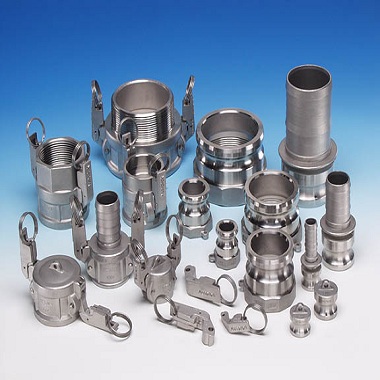

Autolok陰端快速接頭和防塵蓋帽
Autolok Quick Couplers PDF
AUTOLOK®系列快速接頭優點
 超強保護—采用獨特Twin-Kam設計的自鎖臂為防止意外松動和脫卸提供了額外保護。
操作方便—自鎖臂在發出清晰的咔噠聲后自動鎖定。松開時也只需用力拉一下享有的松鎖機構。不需要插入和取出夾具之類，也不需要按下彈簧按鈕之類的裝置。
耐用性和高效性—其設計結構確保好的流量特性。高強度的316不銹鋼材質結構更提高了在嚴酷環境條件下使用的耐用性。
AUTOLOK®系列快速接頭特性
Autolok®對接臂—采用像通常的快速接頭一樣的閉合方法，但是它能自動地進行鎖定。
彈簧圈指環—其設計結構能防止被對接臂纏住，從而保證可靠閉合。簡單地拉一下這個指環就能松開對裝接頭。
高強度結構—可提供316不銹鋼材質的結構。
終身保修（GFL）型對接臂—如果本公司提供的獨特結構的Twin-Kam自鎖臂出現任何破裂，我們將免費進行更換。
Autolok Coupling Series
|
|
733 DL Coupler -
Female NPT |
733 CL Coupler -
Hose Shank |
|
|
733 BL Coupler - Male NPT |
733 DCL Dust Cap |
- 訂購指南
OPW Autolok優越性:
額外保護 – 自鎖手柄，優越的Twin-Kam 雙凸輪設計提供額外保護防止意外松脫和開啟。
易于操作 – 推入時縮緊柄自動縮緊。開啟時只需簡單的提開鎖松脫機構。不需要安裝和拆除卡箍。不需要按動彈簧按鈕。
終身保修(GFL)縮緊柄 – 如果 Twin-Kam雙凸輪柄斷裂，免費更換。
更耐用可靠 – 設計成優化流量。加重的316不銹鋼結構保證惡劣環境的使用壽命。

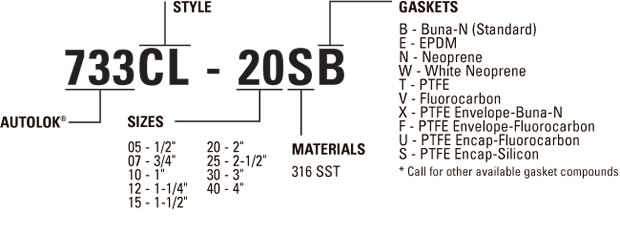

Autolok Coupling Series Ordering Specifications
733 DL Coupler |
Female NPT
產品型號 |
尺寸 |
|
733DL-SS05 |
1?2" |
733DL-SS07 |
3?4" |
733DL-SS10 |
1" |
733DL-SS12 |
1-1?4" |
733DL-SS15 |
1-1?2" |
733DL-SS20 |
2" |
733DL-SS25 |
2-1?2" |
733DL-SS30 |
3" |
733DL-SS40 |
4" |
733 CL Coupler Hose Shank |
產品型號 |
尺寸 |
|
733CL-SS05 |
1?2" |
733CL-SS07 |
3?4" |
733CL-SS10 |
1" |
733CL-SS12 |
1-1?4" |
733CL-SS15 |
1-1?2" |
733CL-SS20 |
2" |
733CL-SS25 |
2-1?2" |
733CL-SS30 |
3" |
733CL-SS40 |
4" |
733 BL Coupler - Male NPT |
產品型號 |
尺寸 |
|
733BL-SS05 |
1?2" |
733BL-SS07 |
3?4" |
733BL-SS10 |
1" |
733BL-SS12 |
1-1?4" |
733BL-SS15 |
1-1?2" |
733BL-SS20 |
2" |
733BL-SS25 |
2-1?2" |
733BL-SS30 |
3" |
733BL-SS40 |
4" |
733 DCL Dust Cap* |
產品型號 |
尺寸 |
 |
733DCL-SS05 |
1?2" |
733DCL-SS07 |
3?4" |
733DCL-SS10 |
1" |
733DCL-SS12 |
1-1?4" |
733DCL-SS15 |
1-1?2" |
733DCL-SS20 |
2" |
733DCL-SS25 |
2-1?2" |
733DCL-SS30 |
3" |
733DCL-SS40 |
4" |
修理包、墊圈和配件
Kamlok修理包
| Kit # |
Size |
| 633ARK-SS07* |
1? 2” & 3?4” |
| 633ARK-SS10 |
1” |
| 633ARK-SS20 |
1-1?4” – 2-1?2” |
| 633ARK-SS30 |
3”, 4” & 5” |
Parts Kit includes:
2 Cam Arms
2 Pins
2 Finger Rings
Instructions
*Note: Finger Rings are not included with 1/2” and 3/4” Kit.
API Couplers 1004D3 API Bottom Loading Coupler
Autolok修理包 獨有鎖臂修理包
| Kit # |
Size |
| 733WARK-SS07 |
3?4” |
| 733WARK-SS10 |
1” |
| 733WARK-SS20 |
1-1?4” – 2-1?2” |
| 733WARK-SS30 |
3” & 4” |
尺寸資料下載
- 外螺紋NPT陰端接頭 733BL
- 防塵蓋帽 733CL
Parts Kit includes:
1 Cam Arm
1 Finger Ring
1 Pin
Instructions
Cliplok修理包 墊圈
| Size (in.) |
Buna-N (Standard) Part No. |
EPDM Part No. |
Neoprene Part No. |
White Neoprene Part No. |
Fluorocarbon-A Part No. |
| 3/4” |
H06595M |
H05215M |
H01881M |
** |
H00966M |
| 1” |
H06480M |
H05216M |
H01884M |
H04196M |
H00967M |
| 1-1/4” |
H06477M |
H20534M |
H01887M |
** |
H00968M |
| 1-1/2” |
H06430M |
H20535M |
H01890M |
H04200M |
H00972M |
| 2” |
H20544M |
H20536M |
H01893M |
H04201M |
H00973M |
| 2-1/2” |
H20545M |
H20537M |
H01896M |
H01189M |
H00974M |
| 3” |
H20546M |
H20538M |
H01899M |
H01190M |
H00975M |
| 4” |
H20547M |
H05225M |
H01902M |
H04208M |
H00976M |
| Size (in.) |
PTFE* Part No. |
PTFE Envelope Buna Part No. |
PTFE Envelope Fluorocarbon Part No. |
PTFE Encapsulated Fluorocarbon Part No. |
PTFE Encapsulated Silicone Part No. |
| 3/4” |
H01979M |
H03304 |
H03401 |
H20887M |
H20888M |
| 1” |
H01980M |
H03307 |
H03402 |
H20889M |
H20890M |
| 1-1/4” |
H01981M |
H03310 |
H03405 |
H20891M |
H20892M |
| 1-1/2” |
H01982M |
H03317 |
H03407 |
H20893M |
H20894M |
| 2” |
H01983M |
H03325 |
H03408 |
H31116M |
H07904M |
| 2-1/2” |
H02172M |
H03330 |
H03410 |
H31118M |
H07905M |
| 3” |
H02173M |
H03333 |
H03411 |
H20895M |
H20896M |
| 4” |
H02174M |
H03336 |
H03412 |
H20845M |
H31562M |
Autolok Couplers & Dust Caps
OPW Autolok quick disconnects are self-locking couplers that provide an added level of safety and convenience at the fluid connection. Autolok’s patented locking mechanism, built into the coupling arm, means you simply snap the locking arms shut with one smooth motion and the coupler stays secure and shut until you unlock it. No clips, pins or buttons. Autolok uses the patented Twin-Kam feature to hold the adaptor more securely to the coupler to provide added protection against accidental release. OPW工程系統公司為客戶提供本行業中所使用的完整系列的快速接頭產品。 Kamlok 是本行業中應用很多的凸輪-滑槽式接頭裝置。這個名字已經成了快速接頭的代名詞，可靠安全，使用方便，被公認為業界的標準。 Autolok 快速接頭是一種自動鎖定的接頭裝置，可提供更高的安全水平。Kamlok和Autolok快速接頭都具備獨特的Twin-Kam自鎖臂結構，該結構能更牢地夾住陽端接頭，防止其出現意外性跑料。這些廣受歡迎的接頭和連接器是市場上安全、堅固和安裝快捷的接頭系統。
