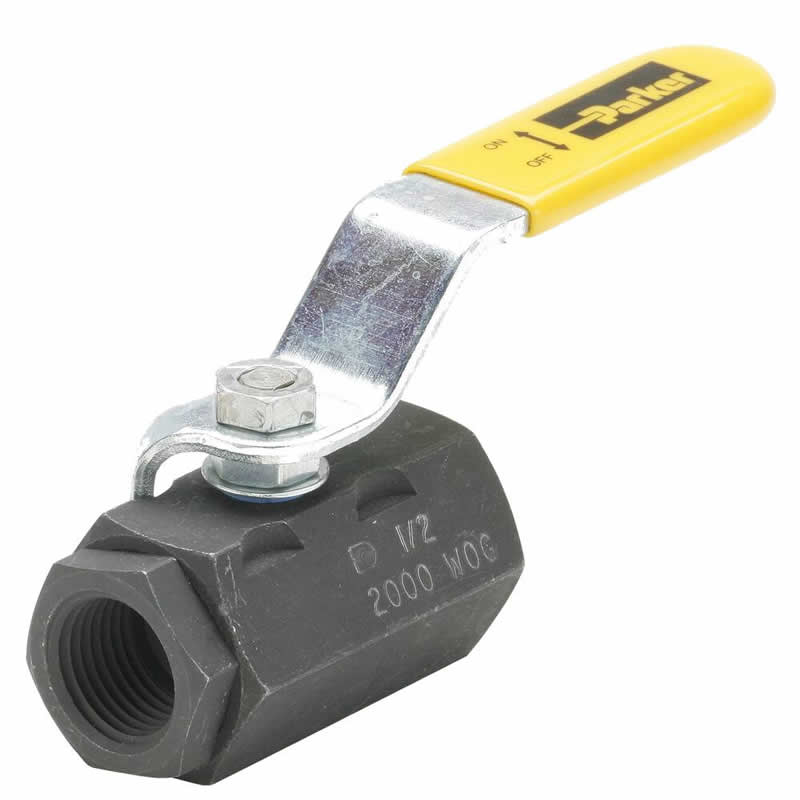

Parker Industrial Ball Valves - Carbon Steel
派克工業碳鋼球閥
Parker派克的碳鋼球閥旨在為需要堅固耐用和可靠性能的應用提供卓越的性能。派克的工業碳鋼球閥系列旨在用于一般用途。這些閥門旨在為需要堅固耐用和可靠性能的應用提供卓越的性能。碳鋼球閥適用于全開或全關位置。根據應用條件，閥門的節流可能導致過早的密封失效和/或無法旋轉閥門手柄。派克公司的碳鋼球閥是為需要堅固可靠性能的應用提供卓越性能而設計的。帕克公司的工業碳鋼球閥是為一般用途而設計的。這些閥門的設計為需要堅固可靠性能的應用提供了優越的性能。碳鋼球閥用于全開或全關位置。根據應用條件，閥門節流可能導致過早密封失效和/或無法轉動閥門手柄。Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's carbon steel ball valves are available in the following styles.
- Female Pipe x Female Pipe
- Female Straight Thread x Female Straight Thread
- Panel Mount
- High Pressure 6,000 psi
碳鋼球閥的選件包括：
- 三通手柄
- 橢圓形手柄
- 掛鎖手柄
市場：
- 重型卡車
- 機動
- 農業
- 建筑
- 工業
功能/優點：
- 碳鋼磷酸鹽涂層車身
- 鋼球
- PTFE閥座/密封件
- 帶二硫化鉬閥座的Delrin（500HP，506HP系列）
應用：
- 燃料管路關閉用于汽油和柴油設備
- 基本設備上的液壓管線
- 需要總關閉能力的工廠設計管道
Options for the carbon steel ball valve include:
- Tee Handle
- Oval Handle
- Padlocking Handle
Markets:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial
Features/Benefits:
- Carbon Steel Phosphate Coated Body
- Steel Ball
- PTFE Seats/Seals
- Delrin with Molybdenum Disulphide Seats (Series 500HP, 506HP)
Applications:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Hydraulic Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability
技術規格參數：
Technical Specifications
Minimum Operating Temperature: -20 to -10 °F, -28 to -23 °C
Maximum Operating Temperature: 210 to 425 °F, 99 to 218 °C
Maximum Operating Pressure: 103 to 413 bar
Connection Type: NPT, Straight Thread, SAE J1926-1
Body Material: Carbon Steel
Ball Material: Steel
Seat Material: Delrin Molybdenum Disulphide, PTFE
Related Documents
Literature and Reference Materials
Brass, Composite and Thermoplastic Fittings and Valves - CAT. 3501E
Quick Reference Guide - 3500-QRG
RACE--Ball valves
RACE--PB Bi-Flow CO2 Valves_uk
Compliance, Certifications, & Safety
Certificate of Registration for Albion, IN facility
Certificate of Registration for Lakeview, MI facility
Certificate of Registration for Otsego, MI facility
Conflict Minerals Statement Parker Fluid System Connectors Division
FSC REACH Product Declaration
Management System Certificate for Otsego, MI
RoHS Product Declaration
Brass Composition
Certificate of Insurance
Safe Drinking Water Act
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
V500CS-12 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-12-04 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-12-21 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-16 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-16-04 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-16-21 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-4 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-4-04 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-4-21 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-6 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-6-04 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-6-21 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-8 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-8-04 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-8-21 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Oval |
Non-Locking |
V500HP-12 |
6000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-16 |
6000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-20 |
6000 |
Female Pipe Ends |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-24 |
6000 |
Female Pipe Ends |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-32 |
6000 |
Female Pipe Ends |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-4 |
6000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-6 |
6000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-8 |
6000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-20 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-20-21 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Oval |
Non-Locking |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
V502CS-24 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-24-21 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Oval |
Non-Locking |
V502CS-32 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-32-21 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Oval |
Non-Locking |
V506CS-12 |
3000 |
Straight Thread Ends |
In Line |
1 1/16-12 |
SAE Straight Thread |
1 1/16-12 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-16 |
3000 |
Straight Thread Ends |
In Line |
1 5/16-12 |
SAE Straight Thread |
1 5/16-12 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-4 |
3000 |
Straight Thread Ends |
In Line |
1/8-27 |
SAE Straight Thread |
7/16-20 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-6 |
3000 |
Straight Thread Ends |
In Line |
9/16-18 |
SAE Straight Thread |
9/16-18 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-8 |
3000 |
Straight Thread Ends |
In Line |
3/4-16 |
SAE Straight Thread |
3/4-16 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506HP-12 |
6000 |
Straight Thread Ends |
In Line |
1 1/16-12 UNF |
SAE J1926-1 |
1 1/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-16 |
6000 |
Straight Thread Ends |
In Line |
1 5/16-12 UNF |
SAE J1926-1 |
1 5/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-20 |
6000 |
Straight Thread Ends |
In Line |
1 5/8-12 UNF |
SAE J1926-1 |
1 5/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-24 |
6000 |
Straight Thread Ends |
In Line |
1 7/8-12 UNF |
SAE J1926-1 |
1 7/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-32 |
6000 |
Straight Thread Ends |
In Line |
2 1/2-12 UNF |
SAE J1926-1 |
2 1/2-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-4 |
6000 |
Straight Thread Ends |
In Line |
7/16-20 UNF |
SAE J1926-1 |
7/16-20 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-6 |
6000 |
Straight Thread Ends |
In Line |
9/16-18 UNF |
SAE J1926-1 |
9/16-18 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-8 |
6000 |
Straight Thread Ends |
In Line |
3/4-16 UNF |
SAE J1926-1 |
3/4-16 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
VP500CS-12 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-16 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-4 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-6 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-8 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-12 |
6000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-16 |
6000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-20 |
6000 |
Female Pipe Ends |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Padlock |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
VP500HP-24 |
6000 |
Female Pipe Ends |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-32 |
6000 |
Female Pipe Ends |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-4 |
6000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-6 |
6000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-8 |
6000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP502CS-20 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Padlock |
VP502CS-24 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP502CS-32 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Padlock |
VP506CS-12 |
3000 |
Straight Thread Ends |
In Line |
1 1/16-12 |
SAE Straight Thread |
1 1/16-12 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506CS-16 |
3000 |
Straight Thread Ends |
In Line |
1 5/16-12 |
SAE Straight Thread |
1 5/16-12 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506CS-4 |
3000 |
Straight Thread Ends |
In Line |
1/8-27 |
SAE Straight Thread |
7/16-20 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506CS-6 |
3000 |
Straight Thread Ends |
In Line |
9/16-18 |
SAE Straight Thread |
9/16-18 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506HP-12 |
6000 |
Straight Thread Ends |
In Line |
1 1/16-12 UNF |
SAE J1926-1 |
1 1/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-16 |
6000 |
Straight Thread Ends |
In Line |
1 5/16-12 UNF |
SAE J1926-1 |
1 5/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-20 |
6000 |
Straight Thread Ends |
In Line |
1 5/8-12 UNF |
SAE J1926-1 |
1 5/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-24 |
6000 |
Straight Thread Ends |
In Line |
1 7/8-12 UNF |
SAE J1926-1 |
1 7/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-32 |
6000 |
Straight Thread Ends |
In Line |
2 1/2-12 UNF |
SAE J1926-1 |
2 1/2-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-4 |
6000 |
Straight Thread Ends |
In Line |
7/16-20 UNF |
SAE J1926-1 |
7/16-20 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-6 |
6000 |
Straight Thread Ends |
In Line |
9/16-18 UNF |
SAE J1926-1 |
9/16-18 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-8 |
6000 |
Straight Thread Ends |
In Line |
3/4-16 UNF |
SAE J1926-1 |
3/4-16 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
|
fcg.cnmec@parkerdistribution.com.cn
