UHP PFA 管熔接接頭（尺寸最大為 1 英寸）– Tubebond 系列 | #TE-1212
Tubebond Series UHP PFA Tube Fusion Bond Fittings (sizes up to 1 inch)
Parker Fittings接頭 Tube Fittings

Tubebond 系列 PFA 管接合接頭（尺寸 1/4 至 1 英寸）提供高泄漏完整性，非常適合不需要可拆卸組件或壓力要求較低但可能不需要 PFA 管道的超高純度 (UHP) 管道系統。Tubebond 系列 PFA 管熔接接頭提供極高的泄漏完整性，使其成為超高純度 (UHP) 半導體制造應用的理想選擇，包括晶圓廠管道運行和工具連接。該接頭提供比傳統接頭更堅固的管連接，非常適合不需要可拆卸組件和/或壓力要求較低但可能不需要 PFA 管道的系統。Tubebond 系列接頭有多種尺寸（1/4 英寸到 1 英寸）和配置（彎頭、三通或異徑管），以滿足客戶系統的獨特要求。它們由半導體級 PFA 材料制成，可以直接焊接到 PFA 管上，從而確保可靠、無泄漏的連接，并將顆粒截留量降至最低。該接頭可用于惰性和腐蝕性過程流體，并在清潔度至關重要的應用中用作消除管接頭泄漏點的經濟方法。 Tubebond Series PFA Tube Bond Fittings (sizes 1/4 to 1 inch) offer high leak integrity and are ideal for ultra-high purity (UHP) tubing systems that do not require removable components or have lower pressure requirements that may not require PFA pipe.

UHP PFA Tube Fusion Bond Fittings (sizes up to 1 inch) – Tubebond Series

Tubebond Series PFA Tube Fusion Bond Fittings offer extremely high leak integrity, making them ideal for use in ultra-high purity (UHP) semiconductor manufacturing applications, including fab tubing runs and tool connections. The fittings provide a stronger tube connection than conventional fittings and are ideal for systems that do not require removable components and/or have lower pressure requirements that may not require PFA pipe.

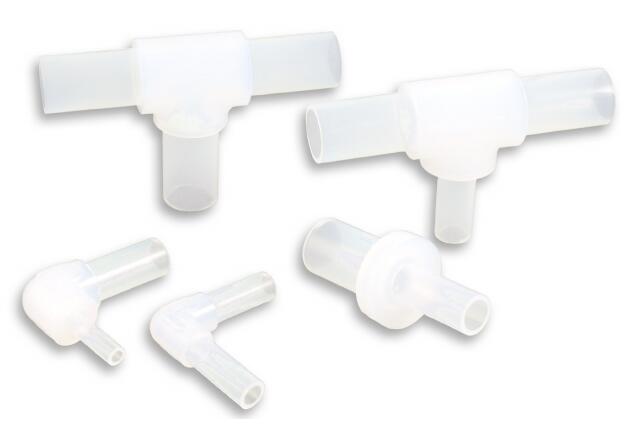

Tubebond Series fittings are available in a variety of sizes (1/4 inch to 1 inch) and configurations (elbow, tee or reducer) to meet the unique requirements of customers' systems. They are fabricated from semiconductor-grade PFA material and can be welded directly to PFA tubing, thus ensuring a reliable, leak free connection with minimal particle entrapment.

The fittings can be used with both inert and corrosive process fluids and serve as an economical method of eliminating tube union leak points in applications where cleanliness is critical.

市場：
- 半導體
- 分析實驗室
- 制藥
- 生物制藥
- 航空航天
- 工業

特性/優勢：
- 高泄漏完整性
- 提供 1/4 英寸至 1 英寸的尺寸
- 提供各種配置，包括彎頭、三通和異徑管
- 由半導體級 PFA 材料
- 提供比傳統接頭更堅固的管連接
- 非常適合不需要可拆卸組件或壓力要求較低但可能不需要 PFA 管道的管道系統

應用：
- 腐蝕性和特殊化學品、酸、堿和漿液
- 半導體工具
- 工具連接件
- 閥組箱 (VMB) )
- CMP/漿料系統

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- High leak integrity
- Available in sizes 1/4 inch to 1 inch
- Available in various configurations, including elbows, tees, and reducers
- Made from semiconductor-grade PFA material
- Provide a stronger tube connection than conventional fittings
- Ideal for tubing systems that do not require removable components or have lower pressure requirements that may not require PFA pipe

Applications:
- Corrosive and specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMB)
- CMP/Slurry systems

Technical Specifications

UHP PFA Tube Fusion Bond Fittings (sizes up to 1 inch) – Tubebond Series 型號
