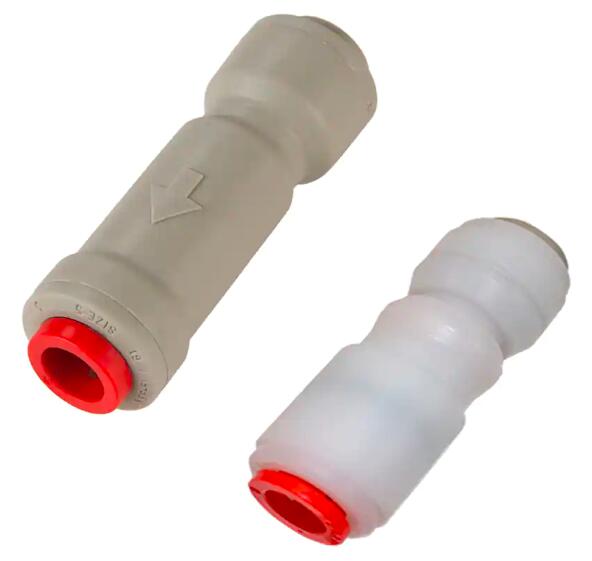

LIQUIfit聚合材料單向閥 - LIQUIfit單向閥 LIQUIfit Polymer Non-Return Valves
Pneumatic Fittings - Parker Fittings接頭

LIQUIfit單向閥能滿足飲料輸送的要求。這些接頭可以讓流體單方向流動，反向截止。這些接頭可以進行管式安裝，能夠?qū)ο到y(tǒng)進行整體保護。LIQUIfit non-return valves meet the requirements for conveying beverages. They allow flow in one direction and prevent any return flow.
Fitted in the circuit, they provide total protection. LIQUIfit non-return valves meet the requirements for conveying beverages. They allow flow in one direction and prevent any return flow. Fitted in the circuit, they provide total protection.

Features/Benefits:
特征/優勢：

-適用于食品飲料的應用

- 與水，食品以及液體狀的食物（液體或者氣體）能夠適應兼容。
- 非常小的開啟壓力
- 優異的化學兼容性
- 耐清洗
- 光滑的表面，設計符合相關的衛生標準要求
- EPDM 密封技術

市場：

- 食品以及飲料
- 水

應用:

- 對軟化水系統，水處理系統以及凈化水系統起到回路保護的作用
- 對飲水分配器，熱水以及冷水系統，起到回路保護的作用

技術：

- 符合食品以及飲料行業相關要求
- 單向閥技術
- 止回閥技術
- 功能接頭
- 氣動回路
- 氣動接頭

技術參數：

- 適用介質：水，飲料，液態事物
- 材料：EPDM,聚甲醛，工程塑料，不銹鋼，不含硅
- 壓力：真空至10 bar
- 溫度：0°C 到 +65°C
- 開啟壓力：0.02 bar

符合規范：

- DI: 2002/95/EC (RoHS), 2011/65/EC
- FDA: 21 CFR 177.1550
- NSF 51 (允許的材料)
- NSF 61
- RG: 1907/2006 (REACH)

產品類型：

- 單向閥

- Suitable for Beverage Applications

- Fully compatible for use with water, beverages and liquid food-stuffs (liquids and gas)
- Very low cracking threshold
- Excellent chemical compatibility
- Resistant to cleaning products
- Hygienic design with smooth surfaces
- Fluid direction indicated
- EPDM sealing technology

Markets:

- Food and Beverage
- Water

Applications:

- Circuit Protection for Water Softeners, Water Treatment, Water Purification Systems
- Circuit Protection for Drinks Dispensers, Hot & Cold Water Systems

Technologies:

- Food and beverage
- Non-return valve
- Check valve
- Function fitting
- Pneumatic system
- Pneumatic fittings

Technical Characteristics:

- Fluids: Water, beverages, liquid foodstuffs
- Materials: EPDM, acetal, technical polymer, stainless steel, silicone-free
- Pressure: Vacuum to 10 bar
- Temperature: 0°C to +65°C
- Cracking pressure: 0.02 bar

Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- FDA: 21 CFR 177.1550
- NSF 51 (referenced material)
- NSF 61
- RG: 1907/2006 (REACH)

Product Types:

- Single Non-Return Valve

Technical Specifications

技術規格：

LIQUIfit Polymer Non-Return Valves 型號
