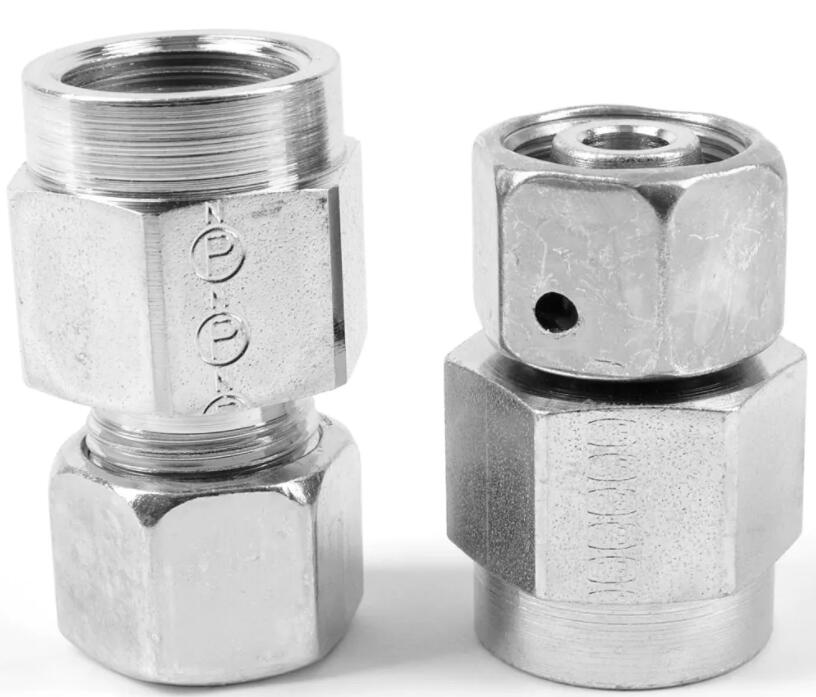

Ermeto DIN 壓力表適配器 | #MAV04LLR71

Ermeto DIN 壓力表適配器的功能是連接 2 根相同或不同直徑的管道或軟管。該系列配件有鋼和不銹鋼兩種。Ermeto DIN 壓力表適配器的功能是連接 2 根相同或不同直徑的管道或軟管。該系列接頭采用鋼和不銹鋼材質，額定壓力高達 800 bar (PN)。這些 MAV 和 MAVE 型 DIN 接頭有鋼和不銹鋼版本，壓力等級高達 630 bar (PN)。特點/優點：- 鋼和不銹鋼接頭對腐蝕性介質和環境影響具有很高的耐腐蝕性。這些特性擴展了應用范圍。- 壓力表適配器的壓力額定值高達 630 bar（S 系列）和 500 bar（L 系列）。這些特點擴大了應用范圍。

市場：
- 汽車
- 國防
- 能源
- 環境
- 工業
- 基礎設施
- 機床
- 物料搬運
- 移動
- 石油和天然氣
- 發電
- 工藝
- 運輸
- 水

應用：
- 適用于一般液壓應用。

技術規格：

產品序列： Very light
連接 1 類型： 24° cone end
連接 1 管道外徑： 04 mm
連接 2 類型： Female BSPP thread
連接 2 尺寸： G 1/4
結構材料： Stainless Steel
可選配件： Pre-assembled with nut and EO-DPR cutting ring
形狀： Pressure gauge connector

部件	產品序列	連接 1 類型	連接 1 管道外徑	連接 2 類型	連接 2 尺寸	結構材料	可選配件
MAV04LLR71	Very light	24° cone end	04 mm	Female BSPP thread	G 1/4	Stainless Steel	Pre-assembled with nut and EO-DPR cutting ring
MAV04LLROMD71	Very light	24° cone end	04 mm	Female BSPP thread	G 1/4	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV04LLROMDCF	Very light	24° cone end	04 mm	Female BSPP thread	G 1/4	Steel	Without nut and ring, but including all other components such as seals
MAV04ZLLR71	Very light	24° cone end	04 mm	Female BSPP thread	G 1/4	Stainless Steel	Pre-assembled with EO-2 functional nut
MAV04ZLLRCF	Very light	24° cone end	04 mm	Female BSPP thread	G 1/4	Steel	Pre-assembled with EO-2 functional nut
MAV06LR1/2CF	Light	24° cone end	06 mm	Female BSPP thread	G 1/2	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV06LR1/2MS	Light	24° cone end	06 mm	Female BSPP thread	G 1/2	Brass	Pre-assembled with nut and EO-D cutting ring
MAV06LRCFX	Light	24° cone end	06 mm	Female BSPP thread	G 1/2	Steel	Basic fitting body without any nut, ring, seal or other component
MAV06LRMS	Light	24° cone end	06 mm	Female BSPP thread	G 1/2	Brass	Pre-assembled with nut and EO-D cutting ring
MAV06LROMD71	Light	24° cone end	06 mm	Female BSPP thread	G 1/4	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV06SR1/4CF	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/4	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV06SR1/4OMDCF	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/4	Steel	Without nut and ring, but including all other components such as seals
MAV06SR3/8CFX	Heavy	24° cone end	06 mm	Female BSPP thread	G 3/8	Steel	Basic fitting body without any nut, ring, seal or other component
MAV06SR71	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/2	Stainless Steel	Pre-assembled with nut and EO-DPR cutting ring
MAV06SRMS	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/2	Brass	Pre-assembled with nut and EO-D cutting ring
MAV06SROMD71	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/2	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV06SROMDCF	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/2	Steel	Without nut and ring, but including all other components such as seals
MAV06ZSRCF	Heavy	24° cone end	06 mm	Female BSPP thread	G 1/2	Steel	Pre-assembled with EO-2 functional nut
MAV08LR1/271X	Light	24° cone end	08 mm	Female BSPP thread	G 1/2	Stainless Steel	Basic fitting body without any nut, ring, seal or other component
MAV08LR71X	Light	24° cone end	08 mm	Female BSPP thread	G 1/4	Stainless Steel	Basic fitting body without any nut, ring, seal or other component
MAV08LRCFX	Light	24° cone end	08 mm	Female BSPP thread	G 1/4	Steel	Basic fitting body without any nut, ring, seal or other component
MAV08LRMS	Light	24° cone end	08 mm	Female BSPP thread	G 1/4	Brass	Pre-assembled with nut and EO-D cutting ring
MAV08LROMD71	Light	24° cone end	08 mm	Female BSPP thread	G 1/4	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV08SR1/4CF	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/4	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV08SR1/4OMDCF	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/4	Steel	Without nut and ring, but including all other components such as seals
MAV08SR71	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/2	Stainless Steel	Pre-assembled with nut and EO-DPR cutting ring
MAV08SR71X	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/2	Stainless Steel	Basic fitting body without any nut, ring, seal or other component
MAV08SRCFX	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/2	Steel	Basic fitting body without any nut, ring, seal or other component
MAV08SROMD71	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/2	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV08ZLR71	Light	24° cone end	08 mm	Female BSPP thread	G 1/4	Stainless Steel	Pre-assembled with EO-2 functional nut
MAV08ZSR71	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/2	Stainless Steel	Pre-assembled with EO-2 functional nut
MAV08ZSRCF	Heavy	24° cone end	08 mm	Female BSPP thread	G 1/2	Steel	Pre-assembled with EO-2 functional nut
MAV10LR71X	Light	24° cone end	10 mm	Female BSPP thread	G 1/4	Stainless Steel	Basic fitting body without any nut, ring, seal or other component
MAV10LRCFX	Light	24° cone end	10 mm	Female BSPP thread	G 1/4	Steel	Basic fitting body without any nut, ring, seal or other component
MAV10LROMD71	Light	24° cone end	10 mm	Female BSPP thread	G 1/4	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV10SR1/4CF	Heavy	24° cone end	10 mm	Female BSPP thread	G 1/4	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV10SR1/4OMDCF	Heavy	24° cone end	10 mm	Female BSPP thread	G 1/4	Steel	Without nut and ring, but including all other components such as seals
MAV10SR71	Heavy	24° cone end	10 mm	Female BSPP thread	G 1/2	Stainless Steel	Pre-assembled with nut and EO-DPR cutting ring
MAV10SRMS	Heavy	24° cone end	10 mm	Female BSPP thread	G 1/2	Brass	Pre-assembled with nut and EO-D cutting ring
MAV10SROMD71	Heavy	24° cone end	10 mm	Female BSPP thread	G 1/2	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV10SROMDCF	Heavy	24° cone end	10 mm	Female BSPP thread	G 1/2	Steel	Without nut and ring, but including all other components such as seals
MAV12LR1/271	Light	24° cone end	12 mm	Female BSPP thread	G 1/2	Stainless Steel	Pre-assembled with nut and EO-DPR cutting ring
MAV12LR1/2CF	Light	24° cone end	12 mm	Female BSPP thread	G 1/2	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV12LR1/2OMD71	Light	24° cone end	12 mm	Female BSPP thread	G 1/2	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV12LR1/2OMDCF	Light	24° cone end	12 mm	Female BSPP thread	G 1/2	Steel	Without nut and ring, but including all other components such as seals
MAV12LR71X	Light	24° cone end	12 mm	Female BSPP thread	G 1/4	Stainless Steel	Basic fitting body without any nut, ring, seal or other component
MAV12LRCFX	Light	24° cone end	12 mm	Female BSPP thread	G 1/4	Steel	Basic fitting body without any nut, ring, seal or other component
MAV12LRMS	Light	24° cone end	12 mm	Female BSPP thread	G 1/4	Brass	Pre-assembled with nut and EO-D cutting ring
MAV12LROMD71	Light	24° cone end	12 mm	Female BSPP thread	G 1/4	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV12LROMDCF	Light	24° cone end	12 mm	Female BSPP thread	G 1/4	Steel	Without nut and ring, but including all other components such as seals
MAV12SR1/471	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/4	Stainless Steel	Pre-assembled with nut and EO-DPR cutting ring
MAV12SR1/4CF	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/4	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV12SR1/4OMD71	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/4	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV12SR1/4OMDCF	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/4	Steel	Without nut and ring, but including all other components such as seals
MAV12SRCFX	Heavy	24° cone end	12 mm	Female BSPP thread	G 3/8	Steel	Basic fitting body without any nut, ring, seal or other component
MAV12SRMS	Heavy	24° cone end	12 mm	Female BSPP thread	G 3/8	Brass	Pre-assembled with nut and EO-D cutting ring
MAV12SROMD71	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/2	Stainless Steel	Without nut and ring, but including all other components such as seals
MAV12SROMDCF	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/2	Steel	Without nut and ring, but including all other components such as seals
MAV12ZLR71	Light	24° cone end	12 mm	Female BSPP thread	G 1/4	Stainless Steel	Pre-assembled with EO-2 functional nut
MAV12ZSR71	Heavy	24° cone end	12 mm	Female BSPP thread	G 1/2	Stainless Steel	Pre-assembled with EO-2 functional nut
MAV15LR1/2CF	Light	24° cone end	15 mm	Female BSPP thread	G 1/2	Steel	Pre-assembled with nut and EO-PSR cutting ring
MAV16SRCFX	Heavy	24° cone end	16 mm	Female BSPP thread	G 1/2	Steel	Basic fitting body without any nut, ring, seal or other component
MAVE06LR71	Light	24° DKO swivel	06 mm	Female BSPP thread	G 1/4	Stainless Steel	n/a
MAVE06SR1/471	Heavy	24° DKO swivel	06 mm	Female BSPP thread	G 1/4	Stainless Steel	n/a
MAVE06SR71	Heavy	24° DKO swivel	06 mm	Female BSPP thread	G 1/2	Stainless Steel	n/a
MAVE08LR1/2CF	Light	24° DKO swivel	08 mm	Female BSPP thread	G 1/2	Steel	n/a
MAVE08SR71	Heavy	24° DKO swivel	08 mm	Female BSPP thread	G 1/2	Stainless Steel	n/a
MAVE10SR1/471	Heavy	24° DKO swivel	10 mm	Female BSPP thread	G 1/4	Stainless Steel	n/a
MAVE10SR71	Heavy	24° DKO swivel	10 mm	Female BSPP thread	G 1/2	Stainless Steel	n/a
MAVE12LR1/271	Light	24° DKO swivel	12 mm	Female BSPP thread	G 1/2	Stainless Steel	n/a
MAVE12LR1/2CF	Light	24° DKO swivel	12 mm	Female BSPP thread	G 1/2	Steel	n/a
MAVE12LR3/8CF	Light	24° DKO swivel	12 mm	Female BSPP thread	G 3/8	Steel	n/a
MAVE15LR1/271	Light	24° DKO swivel	15 mm	Female BSPP thread	G 1/2	Stainless Steel	n/a
MAVE15LR1/2CF	Light	24° DKO swivel	15 mm	Female BSPP thread	G 1/2	Steel	n/a
MAVE15LRCF	Light	24° DKO swivel	15 mm	Female BSPP thread	G 1/2	Steel	n/a
MAVE16SRCF	Heavy	24° DKO swivel	16 mm	Female BSPP thread	G 1/2	Steel	n/a
MAVE18LR1/2CF	Light	24° DKO swivel	18 mm	Female BSPP thread	G 1/2	Steel	n/a
MAVE18LR1/471	Light	24° DKO swivel	18 mm	Female BSPP thread	G 1/4	Stainless Steel	n/a
MAVE18LR1/4CF	Light	24° DKO swivel	18 mm	Female BSPP thread	G 1/4	Steel	n/a
MAVE20SR1/471	Heavy	24° DKO swivel	20 mm	Female BSPP thread	G 1/4	Stainless Steel	n/a
