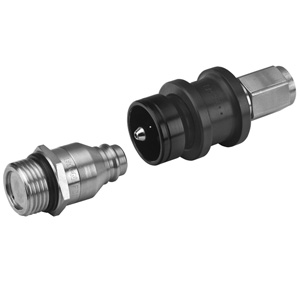

Eaton FD17 high pressure coupling
Eaton FD17系列消防和救援設備車輛配套用高壓快速接頭

Eaton FD17系列高壓快速接頭設計用于適于吸入的空氣transfilling的應用。使用在SCBA設備證明了到NIOSH、NFPA和CBRN標準。該系列的前身為 Aeroquip FD17 品牌，是一種高壓接頭，可在高達 4,500 psi/310 bar 的壓力下手動連接。特點包括在高達 4,500 psi/310 bar 的壓力下連接和斷開；通過符合 NIOSH、NFPA 1981 和 CRN 要求的 SCBA 設備認證 符合 NFPA 1981。FD17高壓接頭應用包括：SCBA 換氣和伙伴呼吸應用等。 Eaton FD17 high pressure coupling can be connected by hand while under pressure up to 4,500 psi/310 bar. This quick disconnect coupling is most commonly used in SCBA transfilling and buddy breathing applications and is commonly found on SCBA equipment certified to various NIOSH, NFPA and CBRN standards.

Eaton FD17 high pressure coupling | EATON Quick Disconnect Couplings

特點

• 連接并且分開在壓力下由 5,500 psi決定。 Connect and disconnect under pressure up to 4,500 psi/310 bar
• 標準身體材料：不銹鋼和鋁 Standard body material: Stainless steel, aluminum
• 能力用于低(- 40oF)和更高的溫度(+160oF)應用
• Complies with NFPA 1981
• Certified on SCBA equipment that meets NIOSH, NFPA, and CBRN requirements

車輛

• 消防和救援設備

• 消防設備

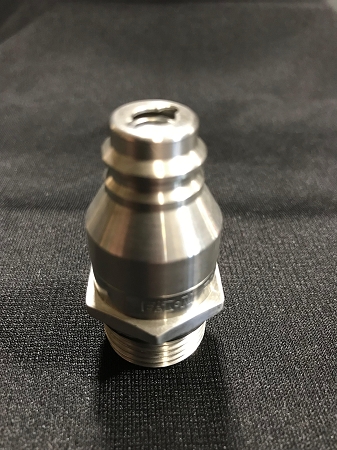

FD17-1003-04-04 AEROQUIP QUICK DISCONNECT 5500PSI FEMALE COUPLER - HP BREATHING AIR	FD17-1002-10-04 AEROQUIP QUICK DISCONNECT 5500PSI MALE NIPPLE - HIGH PRESSURE BREATHING AIR

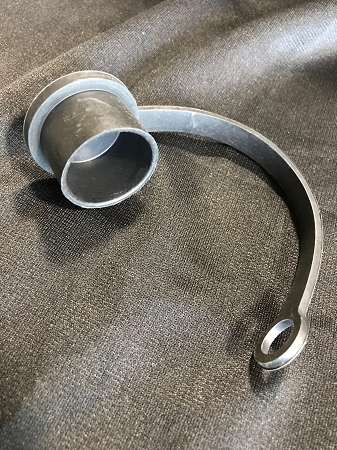

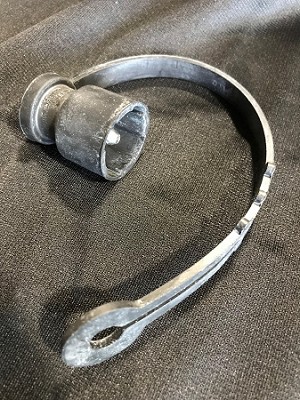

FD17-1062-04 AEROQUIP QUICK DISCONNECT 5500PSI FEMALE DUSTCAP - HIGH PRESSURE BREATHING AIR	FD17-1064-04 AEROQUIP QUICK DISCONNECT 5500PSI MALE DUSTCAP - HP BREATHING AIR
