丹佛斯漢森LL4HKP26食品和飲料應用流體輸送和液壓應用快速接頭
Danfoss hansen LL4HKP26 Fluid transfer & Hydraulic application
Danfoss Hansen LL4HKP26 series for food and beverage applications

丹佛斯漢森LL4HKP26系列是專為食品和飲料應用而設計的特殊HK系列。它是基于不銹鋼HK系列設計的。除了1/4“的2HKGL系列和1/2”版本的快速接頭之間的尺寸差異外：LL4HKP26具有相同的插頭配置。插頭有一個平面，插座有一個長的閥鼻。此外，它主要安裝在不銹鋼罐上，以防止閥門意外打開。

丹佛斯漢森LL4HKP26食品和飲料應用流體輸送和液壓應用快速接頭
Danfoss hansen LL4HKP26 Fluid transfer & Hydraulic application
Danfoss Hansen LL4HKP26 series for food and beverage applications

產品特點

-不銹鋼結構
-尺寸1/2英寸
-防止旋塞閥意外開啟

應用

-食品和飲料應用
-具體應用

插座零件號#LL4HP26S13
插頭零件號#LL4KP26S10
端接（內螺紋）：G1/2

防塵塞和防塵蓋
快速接頭系列
插頭防塵蓋零件號插座防塵塞零件號。
金屬乙烯基金屬乙烯基
4HK XPDC4HK**XPPDC4HK（R

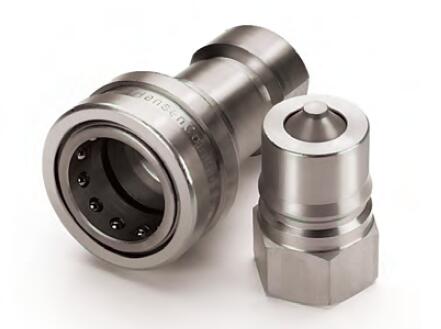

The Danfoss Hansen LL4HKP26 series is a special HK series designed for food and beverage applications. It was designed based on the HK series in stainless steel. Besides the size difference between the 2HKGL series in 1/4" and this coupling made in 1/2" version: the LL4HKP26 has the same plug configuration. The plug has a flat face, and the socket has a long valve nose. It is additionally, mainly mounted on stainless steel tanks to prevent accidental opening of the valves.

Product features
- Stainless steel construction
- Size 1/2''
- Prevention of accidental opening of the plug valve

Application
- Food and beverage application
- Specific application

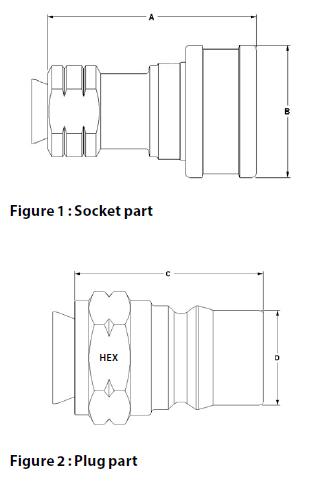

Socket part number # LL4HP26S13
Plug part number # LL4KP26S10
End connection (female): G1/2

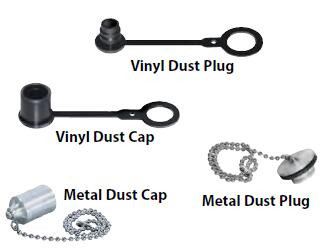

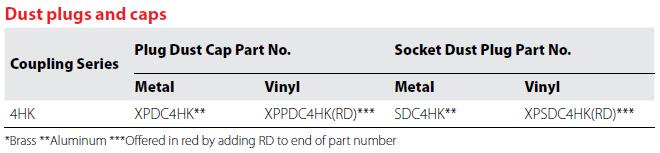

Dust plugs and caps
Coupling Series
Plug Dust Cap Part No. Socket Dust Plug Part No.
Metal Vinyl Metal Vinyl
4HK XPDC4HK** XPPDC4HK(RD)*** SDC4HK** XPSDC4HK(RD)***
*Brass **Aluminum ***Offered in red by adding RD to end of part number
