Ashcroft A-Series Brass Mini Switch
This low cost pressure switch is perfect for OEM applications. The A-Series Brass switch is designed fro tough industrial applications that require a higher quality switch. It has a rugged brass body and a precision snap-acting switch. It can have field adjustable or factory adjusted set points.
A 系列迷你壓力開關（標準或防爆）
* 不銹鋼或銅合金外殼（環氧樹脂或鋼化玻璃纖維密封）
* 壓力范圍：真空～ 5000psi （ -1 ～ 140bar ）
* 內置或平嵌膜片
* 工廠或現場調節設定點 |
 |
Ashcroft A-Series Stainless Steel Mini Switch
This pressure switch is perfect for OEM applications that want a lower cost switch as well as the strength and durability of stainless steel. It can come watertight or explosion proof and can withstand more corrosive media. This low cost pressure switch is perfect for OEM applications. The A-Series Brass switch is designed fro tough industrial applications that require a higher quality switch. It has a rugged brass body and a precision snap-acting switch. It can have field adjustable or factory adjusted set points.
|
 |
Ashcroft B400 Pressure Switch
This is a general purpose pressure switch great for industrial or OEM applications. It comes with a watertight NEMA 4X enclosure and many choices of switch elements. Different wetted materials are available as well as a fixed or limited adjustable deadband. This pressure switch can have ranges as low as Inches of H2O and as high as 3,000 psi.
B 系列開關帶 1 個設定點（標準或防爆）— 差壓，壓力和溫度開關
* 通用型設計，活塞和密封膜片的測量機構
* 防護等級 NEMA4,4X,13 ， IP54 或 IP66
* 測量范圍廣泛且回差小，使用壽命長，性能穩定
* 溫度開關具有 SAMA （美國科學儀器制造協會）二級蒸汽壓力測溫系統
* 量程范圍
壓力：真空～ 3000psi 多級控制
溫度： -40 ℉～ 750 ℉（ -17.7 ℃～ +400 ℃）多級控制，全量程可調
差壓： 30”H2Odiff. ～ 600psid 多級控制
* UL,CSA 和 ATEX 認證
防爆 NEMA7&9 或 EEx d Ⅱ C T6(ATEX), 本安防爆 EEx ia Ⅱ C T4(ATEX) |
 |
Ashcroft G-Series Pressure Switch
The G-Series switch is similar to its B-Series counter part but comes with Stainless Steel casing. This switch is great for hazardous areas as well as food or dairy applications (with 3A connection option). It comes with a watertight NEMA 4X enclosure and many choices of switch elements. Different wetted materials are available as well as a fixed or limited adjustable deadband. This pressure switch can have ranges as low as Inches of H2O and as high as 3,000 psi.
L/G 系列開關帶兩個設定點（標準）— 壓力，差壓和溫度開關
* 1 設定點固定和可調靜區或 2 個單獨設定點，微動開關類型 SPDT
* 密封帶環氧樹脂涂層鋁合金外殼或密封不銹鋼外殼
* 防護等級 NEMA4 和 4X,IP65 或 IP66
* 量程范圍 壓力：真空～ 3000psi 多級控制
溫度： -40 ℉～ 750 ℉（ -17.7 ℃～ +400 ℃）多級控制，全量程可調
差壓： 30” H2O diff. ～ 600psid 多級控制
* UL 和 CSA 認證 |
 |
Ashcroft L-Series Pressure Switch
The L-Series switch is great for OEM or industrial applications. It comes with a watertight NEMA 4X enclosure and many choices of switch elements. Different wetted materials are available as well as a fixed or limited adjustable deadband. This pressure switch can have ranges as low as Inches of H2O and as high as 3,000 psi.
L/G 系列開關帶兩個設定點（標準）— 壓力，差壓和溫度開關
* 1 設定點固定和可調靜區或 2 個單獨設定點，微動開關類型 SPDT
* 密封帶環氧樹脂涂層鋁合金外殼或密封不銹鋼外殼
* 防護等級 NEMA4 和 4X,IP65 或 IP66
* 量程范圍 壓力：真空～ 3000psi 多級控制
溫度： -40 ℉～ 750 ℉（ -17.7 ℃～ +400 ℃）多級控制，全量程可調
差壓： 30” H2O diff. ～ 600psid 多級控制
* UL 和 CSA 認證 |
 |
Ashcroft B700 Pressure Switch
This is a general purpose pressure switch great for hazardous industrial applications. It comes with an explosion proof enclosure and many choices of switch elements. Different wetted materials are available as well as a fixed or limited adjustable deadband. This pressure switch can have ranges as low as Inches of H2O and as high as 3,000 psi.
|
 |
Ashcroft F-Series Pressure Switch
The F-Series switch from Ashcroft uses a diaphragm-seals piston actuator for long service. There are multiple choices for wetted materials and pressure connections as well as setpoints adjustable from 15-100% of the range. It has a watertight aluminum body and a hermetically sealed snap-acting switch element.
F 系列緊湊型壓力開關（防爆）
* 防爆密封陽極氧化鋁外殼，防護等級 NEMA3,4,7&9 ， IP66 ；緊湊型便于特殊空間位置的安裝
* 標準的密封微動開關盒密封的電氣接口防止水汽從電氣接口進入到外殼
* 膜片材質 Buna N,Viton ， Teflon 或不銹鋼
* 量程范圍
壓力：真空至 4000psi 多級控制
溫度： -40 ℉～ 750 ℉（ -17.7 ℃～ +400 ℃）多級控制，全量程可調
* UL 和 CSA 認證
|
 |
Ashcroft N-Series Electronic Explosion Proof Switch
The N-Series is one of a kind to Ashcroft. It uses the Ashcroft K-Series pressure transducer to help minimize moving parts which prolongs the switches life. Pressures are available from 60 all the way to 20,000 psi. The setpoint repeatability of 0.5% is a great feature as well as a adjustable deadbands between 0.1% and 95% of the nominal range.
N 系列電子式壓力開關（標準或防爆）
* 選用壓力傳感器的薄膜應變膜片作為測量元件
* 密封帶環氧樹脂涂層鋁合金外殼，防護等級 NEMA4 ，防爆等級 NEMA7&9
* 壓力范圍： 60 ～ 20000psi （ 4 ～ 1400bar ）
* 繼電器輸出 SPDT ，設定點和靜區可調（靜區可在量程的 0.1% 至 95% 內調整）
* 接液材質不銹鋼
* 大屏幕顯示過程壓力，設定點，復位點等參數，易于觀察
|
 |
Ashcroft N-Series Digital Pressure Switch
The N-Series Digital Switch is one of a kind to Ashcroft. Unlike other series, this switch has a point-of-reference digital display to show the pressure. It uses the Ashcroft K-Series pressure transducer to help minimize moving parts which prolongs the switches life. Pressures are available from 60 all the way to 20,000 psi. The setpoint repeatability of 0.5% is a great feature as well as a adjustable deadbands between 0.1% and 95% of the nominal range.
|
 |
Ashcroft N-Series Explosion Proof Pressure Switch
The N-Series Explosion Proof Switch is one of a kind to Ashcroft. It uses the Ashcroft K-Series pressure transducer to help minimize moving parts which prolongs the switches life. Pressures are available from 60 all the way to 20,000 psi. The setpoint repeatability of 0.5% is a great feature as well as a adjustable deadbands between 0.1% and 95% of the nominal range.
|
 |

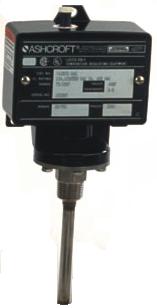

Ashcroft T400 Temperature Switch
This switch from Ashcroft is very easy to use and is great for virtually all process, industrial, and OEM applications. It comes with NEMA 4X enclosure and many choices for switch elements. The setpoints are adjustable from 15-100% of the pressure range. It can have a direct mount with a stem 2 3/4" to 12" long or a remote capillary mounting of up to 25 feet. |
 |
Ashcroft T700 Explosion Proof Temperature Switch
This temperature switch is very similar to its T400 counterpart except it comes with an explosion proof casing. This switch is very easy to use and is great for virtually all process, industrial, and OEM applications. It comes with NEMA 4X enclosure and many choices for switch elements. The setpoints are adjustable from 15-100% of the pressure range. It can have a direct mount with a stem 2 3/4" to 12" long or a remote capillary mounting of up to 25 feet.
|
 |
Ashcroft G-Series Temperature Switch
The G-Series temperature switch is perfect for harsh or corrosive environment applications. It has a watertight enclosure made of 316SS. The setpoints are adjustable from 15-100% of the pressure range. The switch can only come in a remote mounting of up to 25 feet.
P 系列開關帶兩個設定點（標準 / 防爆）— 防爆壓力，差壓和溫度開關
* 1 設定點固定和可調靜區或 2 個單獨設定點
* 密封帶環氧樹脂涂層鋁合金外殼，雙腔室設計，接線端子和設定點調節腔室完全隔離
* 防護等級 NEMA4 ， 4X ；防爆型 NEMA 7/9 ， IP66
* 防爆認證 UL,CSA,ATEX
* 量程范圍 壓力：真空至 3000psi 多級控制
溫度： -40 ℉～ 750 ℉（ -17.7 ℃～ +400 ℃）多級控制，全量程可調
差壓： 30” H2O diff. ～ 400psid 多級控制
|
