EATON Hansen Gromelle H15000 Poppet Couplings
EATON Hansen HA15000系列快速接頭
EATON HANSEN H15000 系列是通用的液壓接頭。主體尺寸從 1/ 4” 到 1” ，材料為鋼。它滿足 ISO 7241-1 系列 A 標準。工作壓力從 200 到 315bar/2,900 到 4,600psi 。H-15000 Series which is designed for general purpose hydraulic service. Available in sizes from 1/ 4” to 1” , in steel, it meets the ISO 7241-1 Series A standard. Working pressure is from 200 to 315 bar / 2,900 to 4,600 psi. HA 15000系列產品符合ISO 7241-1A的生產標準.HA15000系列具有出眾的流量及運行能力.HA15000系列也是一款常規雙向液壓接頭.應用領域包括移動設備,工廠,建筑設備,農業,保養和維修.
EATON Hansen Gromelle H15000 Poppet Couplings
液壓快速接頭資料下載
技術特性
- 雙向關斷
- 通過向后拉動活動套筒進行連接
- 球形鎖
- 滿足ISO7241-1 A系列標準
- 1/2‘’尺寸接頭用于插拔形式（雙向運動套筒、夾板安裝）
- 防塵帽和防塵塞
歐洲標準指南
- 我們的H15000系列快速接頭通徑均不大于25mm，是按照歐洲壓力設備指令97/23 EC條款3.3中的規定設計和制造的。
應用
- 液壓線路和設備
- 農業
- 公共事業
- 液壓流體
材質
- 主體：鍍鋅鋼， 重鉻酸鹽
- 套筒：鍍鋅鋼 重 鉻酸鹽
- 閥：鍍鋅鋼 重 鉻酸鹽
- 彈簧：鋼或不銹鋼
- 鋼球：不銹鋼
- 密封圈：丁晴橡膠
外形輪廓 互換性 |
H15000
ISO 7241-1 A 標準 |
通徑 |
5.3-16.9mm |
最大工作壓力 |
根據尺寸要求,200-315bar (2900-4565 psi ) |
材料 |
鍍鋅鋼
密封件：丁晴橡膠或氟橡膠 |
技術數據 |
球鎖
手動連接
通徑1/2有推挽式（防拉斷）可選 |
應用 |
液壓回路和設備
農業和公共建設工程
液壓流體 |

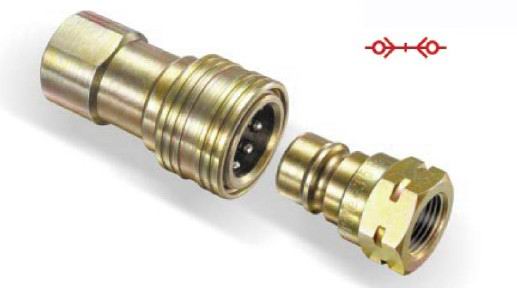

This Two-Way Coupling Series is designed for general purpose hydraulic and fluid transfer and conforms to the dimensional requirements of ISO 7241-1 Series A. This slim profile design features a ball lock; manual connect and disconnect; poppet valving; and zinc plated steel construction. The end connections are NPTF and BSPP and a push-to-connect socket design is available for bulkhead mounting.
|
HA-15000 Series |
|
Product |
Nominal Diameter |
Thread Detail |
Part # |
Notes |
Dust Plugs / Caps |
|
Socket |
1/4" |
1/4-18 NPTF |
HA1521100 |
|
HP1511100 |
|
Socket |
1/4" |
1/4-19 BSPP |
HA1501100 |
|
HP1511100 |
|
Socket |
3/8" |
3/8-18 NPTF |
HA1522100 |
|
HP1512100 |
|
Socket |
3/8" |
3/8-19 BSPP |
HA1502100 |
|
HP1512100 |
|
Socket |
1/2" |
1/2-14 NPTF |
HA1523100 |
|
HP1513100 |
|
Socket |
1/2" |
1/2-14 BSPP |
HA1503100 |
|
HP1513100 |
|
Socket |
1/2" |
1/2-14 NPTF |
HA1523600 |
Push to connect socket |
HP1513100 |
|
Socket |
1/2" |
1/2-14 BSPP |
HA1503600 |
Push to connect socket |
HP1513100 |
|
Socket |
3/4" |
3/4-14 NPTF |
HA1524100 |
|
HP1514200 |
|
Socket |
3/4" |
3/4-14 BSPP |
HA1504100 |
|
HP1514200 |
|
Socket |
1" |
1-11 1/2 NPTF |
HA1525100 |
|
HP1515200 |
|
Socket |
1" |
1-11 BSPP |
HA1505100 |
|
HP1515200 |
|
Plug |
1/4" |
1/4-18 NPTF |
HA1521200 |
|
HP1511200 |
|
Plug |
1/4" |
1/4-19 BSPP |
HA1501200 |
|
HP1511200 |
|
Plug |
3/8" |
3/8-18 NPTF |
HA1522200 |
|
HP1512200 |
|
Plug |
3/8" |
3/8-19 BSPP |
HA1502200 |
|
HP1512200 |
|
Plug |
1/2" |
1/2-14 NPTF |
HA1523200 |
|
HP1513200 |
|
Plug |
1/2" |
1/2-14 BSPP |
HA1503200 |
|
HP1513200 |
|
Plug |
3/4" |
3/4-14 NPTF |
HA1524200 |
|
HP1514200 |
|
Plug |
3/4" |
3/4-14 BSPP |
HA1504200 |
|
HP1514200 |
|
Plug |
1" |
1-11 1/2 NPTF |
HA1525200 |
|
HP1515200 |
|
Plug |
1" |
1-11 BSPP |
HA1505200 |
|
HP1515200 |
|
