適用于CNG加油站的Burial Ready Seal-Line?保護的不銹鋼管
Burial Ready Seal-Line? Protected Stainless Steel Tubing for CNG Fueling Stations

通過使用Seal-Line?埋葬的CNG不銹鋼管，Parker最大限度地降低了對CNG燃料管線造成長期機械損壞的可能性以及對環境進行化學侵蝕的可能性。安裝速度比裸露的裸管快30％。With Seal-Line? burial ready CNG stainless steel tubing, Parker minimizes the possibility of long-term mechanical damage to CNG fuel lines and the possibility of environmental chemical attack. Installs up to 30% faster than bare coiled tubing.

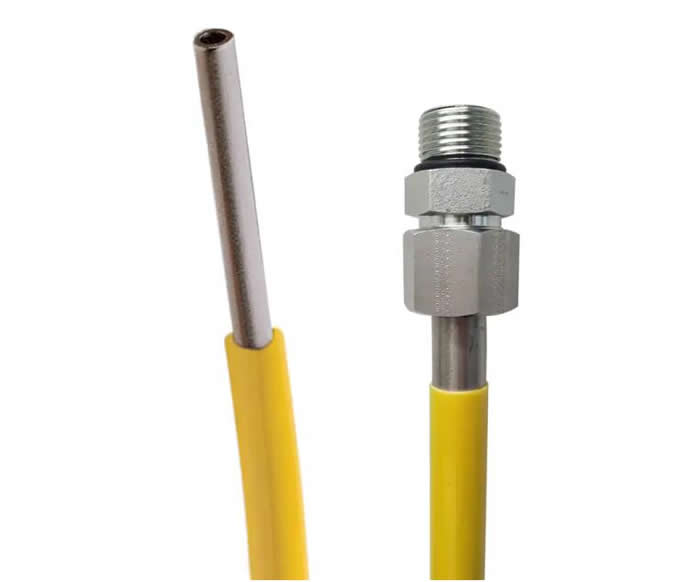

派克的Seal-Line?管已交付給您的下一個項目現場埋葬。密封線管被設計用作分配站的天然氣線。它由耐用的熱塑性覆蓋層組成，覆蓋在316 / 316L級無縫不銹鋼管的整個長度上，以消除將未受保護的管道拉到位并穿過粗糙表面而造成的損壞。交付后，將產品直接從供應卷軸上拉出，并放置在溝槽中以進行埋葬。在需要將管子連接到接頭的端部，可以將護套材料切回，以實現標準的接頭連接。它還消除了焊接的需要，減少了潛在的泄漏點的數量，并防止了表面刮擦損壞不銹鋼管。Parker's Seal-Line? Tubing is delivered to your next project site burial ready. Seal-Line Tubing is designed to be used as a natural gas line for dispensing stations. It consists of a durable, thermoplastic cover extruded over the entire length of grade 316/316L seamless stainless steel tube to eliminate the damage that occurs from pulling unprotected tubing into place and across rough surfaces. Once delivered, the product is pulled directly from the supply reel and laid into the trench for burial applications. At the ends, where the tube needs to be connected to a fitting, the jacket material can be skived back to allow for a standard fitting connection. It also eliminates the need for welding, reducing the number of potential leak points and prevents surface scratch damage to the stainless steel tube. To achieve the most robust and leak-free connections, use with Parker's Seal-Lok? fittings.

市場：
- 石油和天然氣-天然氣加氣站

特點/優點：
- 直接埋葬準備就緒
- 安裝速度比裸盤管快25％至30％
- 經過100％出廠壓力測試
- 無縫管，無機械接頭
- 無需長而連續的長度焊接連接和潛在的泄漏點
- 熱塑性護套可防止污垢，化學物質（氯化物）侵蝕，表面刮擦，應力腐蝕，點蝕和縫隙腐蝕，以實現最長的使用壽命

應用：
- CNG加氣機

技術規格：
- -40°C的工作溫度范圍F至212°F（-40°C至100°C）
- 316 / 316L不銹鋼管結構通過ASTM A269 / A213 EAW認證，無縫
- 符合美國腐蝕工程師協會（NACE）MR0175
- 包裝長度為186至730英尺（56至222米）

Markets:
- Oil & Gas - CNG Refueling Stations

Features/Benefits:
- Direct burial ready
- Installs 25% to 30% faster than bare coiled tubing
- 100% factory pressure tested
- Seamless tubing, with no mechanical joints
- Long, continuous lengths eliminate welded connections and potential leak points
- Thermoplastic jacket protects against dirt, chemical (chlorides) attack, surface scratches, stress corrosion, pitting corrosion and crevice corrosion for maximum life expectancy

Applications:
- CNG Dispensers

Technical Specifications:
- Operating temperature range of -40°F to 212°F (-40°C to 100°C)
- 316/316L stainless steel tube construction certified to ASTM A269 / A213 EAW, Seamless
- Meets National Association of Corrosion Engineers (NACE) MR0175
- Packaged lengths from 186 to 730 feet (56 to 222 meters)

技術指標
最大管外徑（英寸）： 3/4
最大管子外徑： 3/4英寸，19毫米
附加選項： 用戶通過自己的分析和測試，將完全負責系統和組件的最終選擇，并確保滿足應用程序的所有性能，耐用性，維護，安全和警告要求。
管壁厚度： 0.104英寸，2.6毫米
標稱外徑： 0.885英寸，22.5毫米
最小彎曲半徑： 6英寸，152毫米
最大工作壓力： 5,500 psi，379巴
最低工作溫度： -40°F，-40°C
最高工作溫度： 212°F，100°C
應用： 天然氣加氣站
兼容配件： 海豹 CPI; A-LOK?
封面顏色： 黃色
每個包裝的長度： 324 +/- 10％英尺
符合規格： ASTM A269；A213 EAW；NACE MR0175; EN10204.3.1
