Snap-tite GF系列燃?xì)饩哂每焖俳宇^

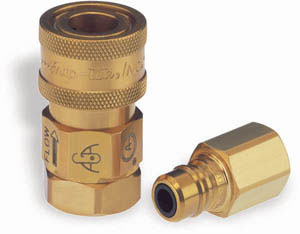

Snap-tite GF Series quick disconnects
GF系列 - Snap-tite的GF系列快速斷開裝置為所有燃?xì)饪炯堋⒖鞠洹⑿‰娖骱桶惭b在腳輪上的餐廳設備提供插入式便利。它們由加拿大標準協會（CSA）認證，前身為美國天然氣協會和加拿大天然氣協會。GF系列配有熱安全切斷裝置，在發生火災時，允許閥門在連接器中關閉。GF Series - Snap-tite's GF Series quick disconnects provide plug-in convenience for all gas grills, ovens, small appliances and caster-mounted restaurant equipment. They are certified to ANSI Z21.41 by the Canadian Standards Association (CSA) formerly known as American Gas Association and Canadian Gas Association. The GF Series is equipped with a thermal safety shut-off which allows the valve to close in the coupler in the event of a fire.
應用：
燃?xì)饩?/strong>
單單向閥球鎖結構；
高溫?cái)嚅_；
材質：黃銅；
尺寸規格：1/4″—1-1/4″；
工作壓力：0.5 psi；
符合ANSI Z21.41標準，獲得CSA認證；
選型資料（插入鏈接）
Snap-tite's GF Series quick disconnects PDF
資料下載
GF Series - Snap-tite's GF Series quick disconnects provide plug-in convenience for all gas grills, ovens, small appliances and caster-mounted restaurant equipment. They are certified to ANSI Z21.41 by the Canadian Standards Association (CSA) formerly known as American Gas Association and Canadian Gas Association. The GF Series is equipped with a thermal safety shut-off which allows the valve to close in the coupler in the event of a fire.
Size Coupler Nipple
1/4" BVGFC4-4F BPGFN4-4F
3/8" BVGFC6-6F BPGFN6-6F
1/2" BVGFC8-8F BPGFN8-8F
3/4" BVGFC12-12F BPGFN12-12F
1" BVGFC16-16F BPGFN16-16F
1-1/4" BVGFC20-20F BPGFN20-20F
Size Coupler Plug Nipple Cap
1/4" PDP-4 PDC-4
3/8" PDP-6 PDC-6
1/2" PDP-8 PDC-8
3/4" PDP-12 PDC-12
snap-tite GF Series : General Purpose Poppet Coupling
snap-tite Natural Gas and Propane Gas Coupling
規格參數：
Sizes - Available in sizes ranging from 1/4" to 1-1/4"
Brass Construction
Ball-Locking Mechanism
Single Shut-Off Configuration
Equipped with Fusible Link that allows the coupling valve to close and shut off the gas supply in the event of a fire
Pressure Rating - 0.5 psi (0.04 bar)
Certified to ANSI Z21.41 by the Canadian Standards Association (CSA) formerly known as CGA and AGA.
BENEFITS
當正確安裝時，Snap-tite的GF系列熔絲可防止燃?xì)饣馂?zāi)，這是本產品的一個明確的安全銷售功能。GF系列聯軸器允許在食品服務應用中方便移動安裝在腳輪上的設備。When properly installed, Snap-tite's GF Series fusible link protects against gas-fed fires which is a definite safety selling feature for this product. The GF Series coupling permits easy movement of caster mounted appliances in food service applications.
|
