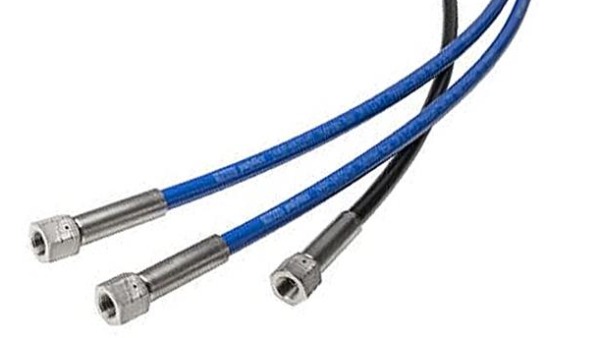

派克70Mpa加氫機軟管 Hydrogen Hose 2440P-04V32 | #2440P-04V32
氫氣軟管 2440P-04V32 | #2440P-04V32

派克 2440P-04V32 氫氣軟管旨在滿足高壓加氫的高要求。 它提供高水平的可靠性、穩健性和長生命周期，并針對在 875 bar 氫燃料站中的運行進行了優化。 派克 2440P-04V32 氫氣軟管旨在滿足在 875 巴和 -40 °C 的預冷氫氣下加氫的高要求。 它提供高水平的可靠性、堅固的設計和更長的使用壽命。 彎曲半徑小，在有限的空間內使用和安裝更方便。 該軟管非常適合為氫燃料汽車快速加油。 Parker 2440P-04V32 Hydrogen Hose is designed to match high demands of high pressure hydrogen refueling. It offers high level of reliability, robustness and long life cycle and is optimized for operation in 875 bar hydrogen fuel stations. Parker 2440P-04V32 Hydrogen Hose is designed to match high demands of Hydrogen refueling at 875 bar with pre-cooled hydrogen of -40 °C. It offers high level of reliability, a robust design and an extended live cycle. Tight bend radius enables more convenient usage and installation in limited spaces. This hose is ideal for fast refueling of Hydrogen cars.

Hydrogen Hose 2440P-04V32 | #2440P-04V32
70Mpa加氫機氫氣軟管 2440P-04V32 | #2440P-04V32

派克漢尼汾針對70MPa加氫機推出的2440P-04V32HT-P軟管，性能超群、優勢顯著：彎曲半徑小，方便用戶在有限的空間使用和安裝；工作壓力高達875bar，符合ISO-19880-5要求，即使在-40℃的環境下也能實現快速加氫；軟管配上護套后耐磨性更高、耐臭氧性更好、抗紫外線能力更強，便于戶外安裝。這些特性不僅有效改善氫氣滲透，還能顯著提升氫氣系統運行安全，讓用戶放心使用。目前，在不少新建加氫站的加氫機中就有上述產品的服務身影，出色的表現贏得客戶一致贊譽。作為運動與控制領域的先行者，派克漢尼汾有著豐富的客戶服務經驗和核心產品技術，能為行業客戶提供安全、可靠的氫能解決方案。還在等什么，趕緊聯系派克漢尼汾團隊，一起攜手推進氫能發展！

市場：

- 替代能源 氫氣，加氫機

特性和優勢

高性能材料和設計

- 市場上第一款工作安全的高壓氫氣軟管 ;
- 即使在 -40 ° C, 由于軟管和接頭的完美匹配也不會出現泄漏；
- 相比較于市場上現存的軟管方案至少 3 倍氫氣加注壽命；
- 可靠的設計 , 最小彎曲半徑小 , 且抗扭結 ;
- 重量輕、降低噪音、抗振動

客戶的獲益之處 :

- 產品可靠 - 無氣體泄漏；
- 安全 , 節省維護費用 , 源于更長的氫氣加注壽命 ( 次數 );
- 降低停機時間 , 并減少維護次數 ( 即加大維護周期 )
- 卓越的可靠性
- 長生命周期
- 堅固的設計
- 小彎曲半徑
- 專為低溫加油

應用：

- 在 875bar 的高壓加氫站為乘用車加氫。 Hydrogen refueling of passenger cars on high pressure Hydrogen fuel stations of 875bar.

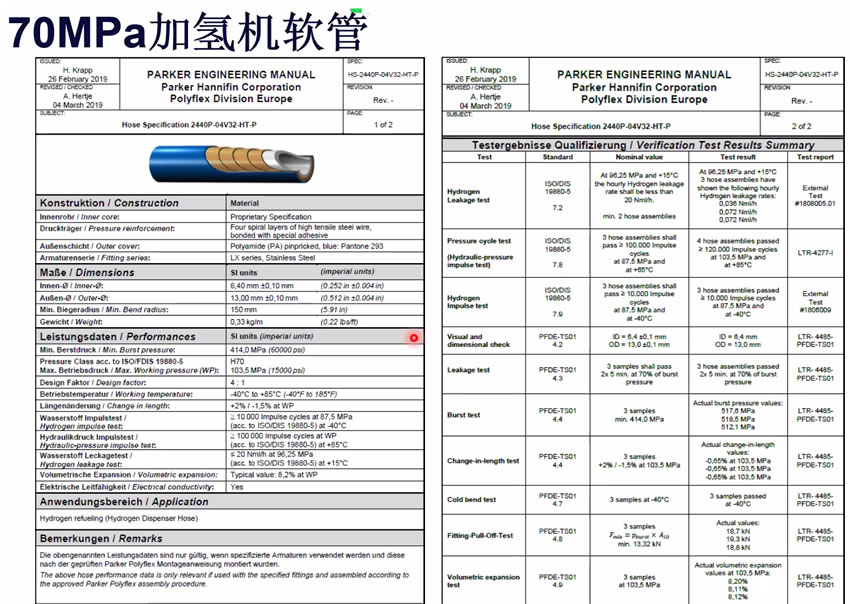

技術規格

• 標稱軟管內徑： 6
• 軟管 ID（尺寸）： -4
• 軟管內徑： 6,4 毫米，1/4 英寸
• 軟管外徑： 13,0 毫米
• 最大工作壓力： 103,5 兆帕，15000 磅/平方英寸
• 最小爆破壓力： 414,0 兆帕，60000 磅/平方英寸
• 最小彎曲半徑： 150 毫米
• 重量（每測量單位）：
• 兼容配件： ——

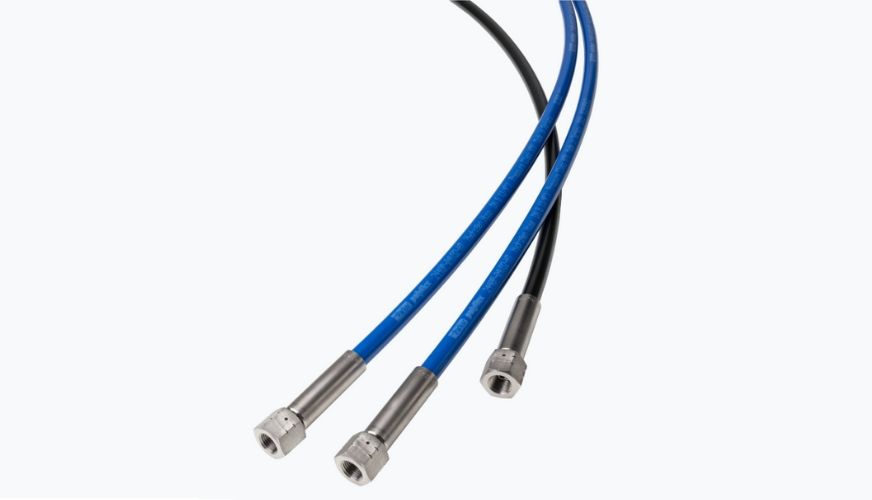

Parker Introduces Polyflex 2440P-04V32 HT-P Hydrogen Hose for Fast Compressed Hydrogen Refueling of Fuel Cell Electric Cars
Lampertheim, Germany, 1. April 2019

Flexible high-performance solution based on new ISO 19880-5 standard combines safety and an enhanced life cycle

Lampertheim, Germany, 1. April 2019 – The Polyflex Division of Parker Hannifin Corporation, the global leader in motion and control technologies, has announced the launch of its new Polyflex 2240P-04V32 HT-P Hydrogen hose developed specifically for high pressure hydrogen refueling of fuel cell electric cars. The ISO 19880-5 complianthoses allow very fast refueling at temperatures as low as -40°C.

Polyflex Hydrogen Hose has a nominal internal diameter of 6.4 mm (1/4 inch) and a minimum bend radius of 150mm (5.90"). An industry-leading 875 bar working pressure allows dispenser manufacturers to overcome the constraints of slow and low-pressure hydrogen refueling. The hoses provide a safe and flexible high-pressure connection between dispenser and passenger car. Pressure tested to H70, mainly in accordance with ISO DIS 19880-5 makes 2440P-04V32 HT-P hydrogen hose an excellent choice for operators facing variable and unpredictable operating conditions at fuel stations.

“Today’s dispenser manufacturer engineers want robust solutions that provide 100% safety, have an easy-to-use design, and an extended life cycle,” said Alexander Hertje, Market Development Manager of Parker’s Polyflex Division. “Parker is continually advancing its hose product offering to meet the expanding challenges of tomorrow. The new Hydrogen dispenser hose has enhanced performance features at longer life cycles,” Hertje added. “Its tight bend radius allows space saving installations, and its high abrasion resistance as well as high ozone and UV resistant cover support deployment outdoors and reduce the risk of abrasion-related problems as well as cover cracks.”

Parker’s newest hydrogen hose features a high-performance thermoplastic inner core tube protected by four layers of high-tensile wire reinforcement. With a wide operating temperature range of -40°F to +185°F (-40°C to +85°C), high cleanliness, and an extremely low permeation rate, 2440P-04V32 HT-P Hydrogen hose is highly suitable for H70 pressure class dispenser applications.
