Parker Skinner CNG Low Pressure Solenoid Valves

CNG Low Pressure Valves Customer Value Natural Gas Solutions
CNG低壓閥門客戶價值天然氣解決方案

派克流體控制部門FCD積極參與為運輸市場提供支持替代燃料應用的系統解決方案。派克FCD目前的產品為CNG應用提供高低壓閥門。我們的內部設計、測試和驗證功能還允許我們提供更復雜、定制的解決方案，以滿足獨特的客戶需求。我們的低壓閥門通過了ECER110認證，這使得該閥門適用于車載應用。Parker Fluid Control Division (FCD) is actively involved in providing system solutions for the transportation market that support alternative fuel applications.Parker FCD’s current product offering features both high and low pressure valves for CNG applications. Our in-house design, test, and validation capabilities also allow us to offer more complex, customized solutions to meet unique customer requirements. Our low pressure valves hold the ECE R110 approval, which makes the valve suitable for vehicle on-board applications.

Parker Skinner CNG Low Pressure Solenoid Valves PDF Catalog

產品特點:

- 2 Way Normally Closed
- Brass Body, FKM & ECO Seals
- ECE R110 Approved
- Minimum Pressure Differential is 10PSI and Maximum Differential is 250PSI
- Media Temperature: -40°F to 185°F
- Power Consumption: 10 Watts
- 12VDC and 24VDC
- Process Connections: 3/8” & 1/2” NPT

Key Features

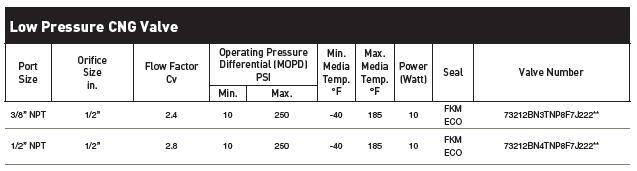

LOW PRESSURE CNG VALVE NUMBER:

7321BN3TNP8F7J222C1
7321BN3TNP8F7J222C2
7321BN4TNP8F7J222C1
7321BN4TNP8F7J222C2

** Valve number ending in “C1” = 12VDC
Valve number ending in “C2” = 24VDC

Parker Fluid Control Division (FCD) is actively involved in providing system solutions for the transportation market that support alternative fuel applications.

Parker FCD’s current product offering features both high and low pressure valves for CNG applications. Our in-house design, test, and validation capabilities also allow us to offer more complex, customized solutions to meet unique customer requirements. Our low pressure valves hold the ECE R110 approval, which makes the valve suitable for vehicle on-board applications.
