EO DIN 標準鉸接連接式管接頭
Parker Fittings接頭
Flareless and Bite Type Fittings
Ermeto DIN banjo fittings
EO-PSR派克獨創的碳鋼漸進式卡套接頭（符合標準DIN 3861，DIN 2353）實現了在高壓下液壓系統的管路和元器件的零泄漏，確保了整個系統可靠的無故障的運行。歸因于EO-PSR卡套獨特的內部結構，卡套是在受控條件下逐漸切入鋼管的，使其適用于廣泛的應用和市場。
裝配過程需要遵循EO-PSR碳鋼漸進式卡套管接頭裝配指南。該系列接頭需要100%進行預裝，從而使終裝變得更簡單。
EO-PSR系列接頭特征/優勢：：
優良的耐腐蝕性能：無六價鉻鍍鋅表面處理能夠超過五百個小時而不產生白銹，這大大延長了接頭的壽命。
耐壓性能：EO-PSR系列接頭耐壓能達到800bar（S系列）及500bar（L系列），這擴展了其應用領域。
對大尺寸螺母(25S/28L及以上)進行特殊工藝處理，因此EO-PSR系列接頭的裝配力矩降低了25%。從而提高了裝配效率，避免了安裝不到位的情況發生。
裝配更安全：EO-PSR卡套獨特的雙刃口設計產生的力矩激增點，作為明顯的安裝完成信號，能最大化地保護裝配的安全。
EO-PSR碳鋼漸進式卡套接頭全世界范圍內通用，同時滿足了24°錐切入式卡套接頭的相關標準的應用需求。
適用應用：機床，行走液壓機械，造船廠、海洋勘探平臺，交通運輸
The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel with Cr(VI)-free surfaces and in stainless steel. The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN banjo fittings, types from WH-M-KDS, TH-R up to DSVW-R is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

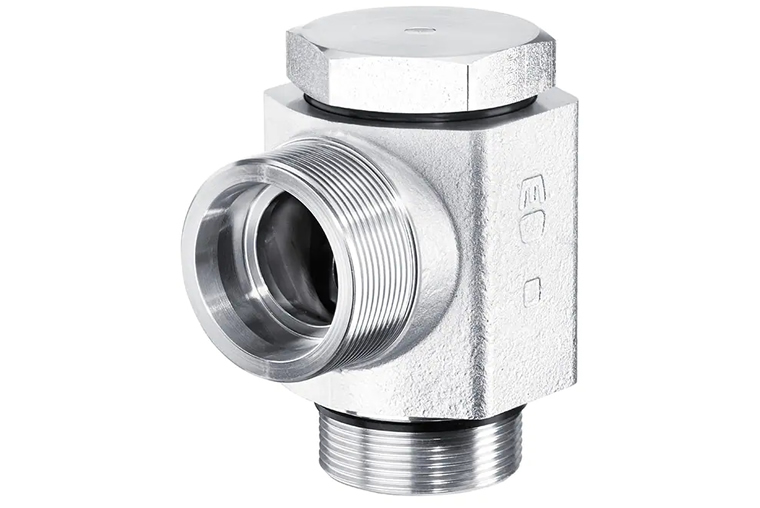

Ermeto DIN banjo fittings
Markets:
- Automotive
- Defence
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Applications:
Suitable for general hydraulic applications.
Features/ benefits:
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- Stainless steel surface: Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
- High pressure: Banjo fittings have pressure ratings of up to 400 bar (S series) and 315 bar (L series). These features increase the range of applications.
Technical Specifications
| Connection 1 Tube Outside Diameter: |
06-42 mm |
| Connection 2 Tube Outside Diameter: |
06-42 mm |
| Connection 1 Size: |
EO 24° cone end |
| Connection 2 Size: |
Male BSPP thread with metal sealing ring, Male BSPP thread with soft seal ring, Male metric thread with metal sealing ring, Male metric thread with soft seal ring, EO 24° cone end, BSPP male stud with metal seal ring, BSPP male stud with soft seal ring, Metric male stud with metal seal ring, Metric male stud with soft seal ring, Male BSPP thread, Male metric thread |
| Shape: |
Banjo elbow, Banjo tee, BSPP male stud banjo elbow, Metric male stud banjo elbow, Low pressure banjo elbow |
| Connection Size: |
G 1/8 to G 1 1/2; M 08x1.0 to M48x2.0 |
| Product Series: |
Very light, Light, Heavy |
| Connection 3 Size: |
na, Male BSPP thread with metal sealing ring, Male BSPP thread with soft seal ring, Male metric thread with metal sealing ring, Male metric thread with soft seal ring |
| Optional Accessories: |
na, Pre-assembled with nut and EO-PSR cutting ring, Pre-assembled with EO-2 functional nut, Pre-assembled with nut and EO-DPR cutting ring |
| Tube Outside Diameter: |
6-42 mm |
| Maximum Operating Temperature: |
+250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F |
| Maximum Operating Pressure: |
160-400 bar, 16-40 MPa, 2321-5802 psi |
| Minimum Operating Temperature: |
-40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F |
| Application: |
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation |
| Connection Type: |
Bite Type, Soft Seal Bite Type |
| Specifications Met: |
DIN ISO 8434 |
| Materials of Construction: |
Steel zinc plated (CrVI-free), Stainless steel |
Ermeto DIN banjo fittings型號
Part Series Connection 1 Style Connection 2 Style Connection 3 Style Connection 1 Tube O.D. (mm) Shape Fitting Material Connection 2 Tube O.D. (mm) Connection Size Pre-Installed Optional Accessories
DSVW06LMCF Light 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW06LMOMDCF Light 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
DSVW06LRCF Light 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW06LROMDCF Light 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/8 A na
DSVW06SMCF Heavy 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW06SMOMDCF Heavy 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
DSVW06SRCF Heavy 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW06SROMDCF Heavy 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW06ZLMCF Light 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
DSVW06ZLRCF Light 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
DSVW06ZSMCF Heavy 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
DSVW06ZSRCF Heavy 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW08LMCF Light 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW08LMOMDCF Light 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
DSVW08LRCF Light 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW08LROMDCF Light 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW08SMCF Heavy 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW08SMOMDCF Heavy 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
DSVW08SRCF Heavy 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW08SROMDCF Heavy 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW08ZLMCF Light 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
DSVW08ZLRCF Light 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW08ZSMCF Heavy 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
DSVW08ZSRCF Heavy 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW10LMCF Light 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW10LMOMDCF Light 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
DSVW10LRCF Light 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW10LROMDCF Light 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW10SMCF Heavy 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW10SMOMDCF Heavy 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
DSVW10SRCF Heavy 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW10SROMDCF Heavy 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A na
DSVW10ZLMCF Light 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
DSVW10ZLRCF Light 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW10ZSMCF Heavy 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
DSVW10ZSRCF Heavy 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
DSVW12LMCF Light 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW12LMOMDCF Light 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
DSVW12LRCF Light 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW12LROMDCF Light 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A na
DSVW12SMCF Heavy 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW12SMOMDCF Heavy 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
DSVW12SRCF Heavy 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW12SROMDCF Heavy 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A na
DSVW12ZLMCF Light 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
DSVW12ZLRCF Light 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
DSVW12ZSMCF Heavy 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
DSVW12ZSRCF Heavy 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
DSVW14SMCF Heavy 24° cone end Male metric thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW14SMOMDCF Heavy 24° cone end Male metric thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na M 20x1.5 na
DSVW14SRCF Heavy 24° cone end Male BSPP thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW14SROMDCF Heavy 24° cone end Male BSPP thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW14ZSMCF Heavy 24° cone end Male metric thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with EO-2 functional nut
DSVW14ZSRCF Heavy 24° cone end Male BSPP thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW15LMCF Light 24° cone end Male metric thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW15LMOMDCF Light 24° cone end Male metric thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
DSVW15LRCF Light 24° cone end Male BSPP thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW15LROMDCF Light 24° cone end Male BSPP thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW15ZLMCF Light 24° cone end Male metric thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
DSVW15ZLRCF Light 24° cone end Male BSPP thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW16SMCF Heavy 24° cone end Male metric thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW16SMOMDCF Heavy 24° cone end Male metric thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
DSVW16SRCF Heavy 24° cone end Male BSPP thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW16SROMDCF Heavy 24° cone end Male BSPP thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW16ZSMCF Heavy 24° cone end Male metric thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
DSVW16ZSRCF Heavy 24° cone end Male BSPP thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW18LMCF Light 24° cone end Male metric thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW18LMOMDCF Light 24° cone end Male metric thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
DSVW18LRCF Light 24° cone end Male BSPP thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW18LROMDCF Light 24° cone end Male BSPP thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW18ZLMCF Light 24° cone end Male metric thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
DSVW18ZLRCF Light 24° cone end Male BSPP thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW20SMCF Heavy 24° cone end Male metric thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW20SMOMDCF Heavy 24° cone end Male metric thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na M 27x2.0 na
DSVW20SRCF Heavy 24° cone end Male BSPP thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW20SROMDCF Heavy 24° cone end Male BSPP thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A na
DSVW20ZSMCF Heavy 24° cone end Male metric thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
DSVW20ZSRCF Heavy 24° cone end Male BSPP thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
DSVW22LMCF Light 24° cone end Male metric thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW22LMOMDCF Light 24° cone end Male metric thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na M 26x1.5 na
DSVW22LRCF Light 24° cone end Male BSPP thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW22LROMDCF Light 24° cone end Male BSPP thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A na
DSVW22ZLMCF Light 24° cone end Male metric thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
DSVW22ZLRCF Light 24° cone end Male BSPP thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
DSVW25SMCF Heavy 24° cone end Male metric thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW25SMOMDCF Heavy 24° cone end Male metric thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
DSVW25SRCF Heavy 24° cone end Male BSPP thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
DSVW25SROMDCF Heavy 24° cone end Male BSPP thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A na
DSVW25ZSMCF Heavy 24° cone end Male metric thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
DSVW25ZSRCF Heavy 24° cone end Male BSPP thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
DSVW28LMCF Light 24° cone end Male metric thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW28LMOMDCF Light 24° cone end Male metric thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
DSVW28LRCF Light 24° cone end Male BSPP thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
DSVW28LROMDCF Light 24° cone end Male BSPP thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A na
DSVW28ZLMCF Light 24° cone end Male metric thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
DSVW28ZLRCF Light 24° cone end Male BSPP thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
DSVW30SMCF Heavy 24° cone end Male metric thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW30SMOMDCF Heavy 24° cone end Male metric thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
DSVW30SRCF Heavy 24° cone end Male BSPP thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW30SROMDCF Heavy 24° cone end Male BSPP thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
|
