Dynalco M204 Magnetic Pickup電磁感應速度傳感器
Dynalco M204 Speed Sensor傳感器
Dynalco M204 Magnetic Pickup傳感器
Dynalco M204 Speed Sensor傳感器
Download Info:
Dynalco M204 Data Sheet
Dynalco M204 Agency Approval

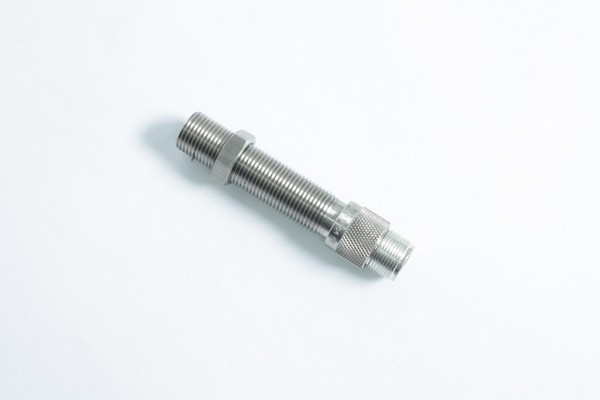

Dynalco M204 Magnetic Pickup/Speed Sensor電磁感應速度傳感器
Product Code: M204
Description
這種電磁感應速度傳感器的齊納有限輸出使其本質安全，并通過了CSA認證。它甚至在低速（<300轉/分）、大齒輪（>2英寸直徑）應用中也能產生輸出。它有中等長度（2.5英寸）和5/8-18螺紋。The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.5 inches) and a 5/8-18 thread.
大多數(shù)經CSA認證的皮卡僅在用作特定認證系統(tǒng)或組件的一部分時保留該認證。UL、CENELEC和一些經CSA批準的拾音器可用于任何儀器。Most CSA-certified pickups retain that approval only when used as part of a specific certified system or assembly. UL, CENELEC, and some CSA approved pickups may be used with any instrumentation.
|
