New Parker Subsea Small Bore Valves 派克新的海底小口徑閥門

滿足深海油氣勘探需求 更深的水、更遠的海岸距離以及更高的儲層溫度和壓力——石油和天然氣勘探的新常態。 派克的新型海底閥門能夠承受高鹽含量海水的長期腐蝕影響，并在極端溫度和壓力條件下工作，使其成為巴西近海、墨西哥灣、北海、西非和亞洲等地區的理想選擇. 這些閥門可采用多種耐腐蝕合金和多種連接方式，包括錐螺紋、對焊和 NPT。 這些閥門配有手柄或槳葉，旨在促進手動操作或遠程操作車輛 (ROV) 作為選項進行操作。 這些閥門的設計符合或超過 API6A/17D PSL 3/3G 的嚴格鑒定測試要求。

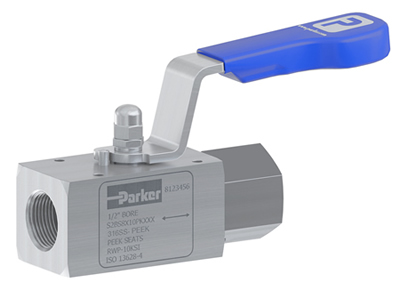

派克2 通軟座球閥 兩件式，浮球式，側入式結構 雙向液體流動 PEEK 閥座具有出色的耐化學性、耐熱性和耐磨性 低摩擦、壓力輔助的 PTFE 軸封可延長循環壽命并降低操作扭矩 額外的密封件設計用于防止水和淤泥進入任何螺紋或旋轉部件 設計用于接受多種類型的管材和管端連接 提供多種耐腐蝕材料	派克海底針閥 非上升、非旋轉閥桿 三件式螺栓閥蓋結構 單向流動 金屬對金屬閥座實現了氣密關閉、更長的閥桿/閥座壽命和更高的重復打開/關閉周期的耐用性 雙 O 型環閥桿密封可防止海水和淤泥進入任何螺紋或旋轉部件 低摩擦、壓力輔助 PTFE/PEEK 軸封可延長循環壽命并降低操作扭矩。 非上升、非旋轉閥桿可防止閥桿磨損和閥座損壞

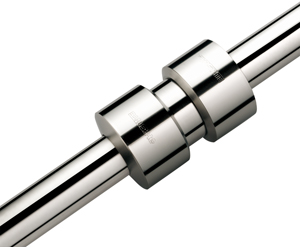

派克Phastite海底管件 Parker Phastite Tube Fittings For Subsea 派克的 Phastite? 永久壓縮接頭提供了一種非常快速、簡單和簡單的永久連接管道的方式。它的創新設計理念消除了昂貴的焊接要求，并將快速安裝與信號組裝過程相結合。	海底體驗 幾十年來，派克一直處于儀器儀表小型海底閥門研發的前沿，最初憑借其 Autoclave Engineers 工程師產品組合，我們的閥門繼續被世界各地的所有者/運營商指定。

New Parker Subsea Small Bore Valves

Meeting the Demands of Deep Offshore Oil and Gas Exploration
Deeper water, greater distances from shore, and higher reservoir temperatures and pressures - The NEW NORMAL in Oil and gas exploration.

Parker's new subsea valves have the ability to withstand long-term corrosion effects from high salt content sea water and perform in extreme temperature and pressure conditions, making them ideal for regions such as offshore Brazil, Gulf of Mexico, North Sea, West Africa and Asia.

These valves are available in a range of corrosion resistant alloys and a wide range of connections including cone-and-thread, buttweld and NPT. Supplied with a handle or a paddle, the valves are designed to facilitate operation either manually or by a Remotely Operated Vehicle (ROV) as an option.

The valves have been designed to meet or exceed the rigorous qualification test requirements of API6A/17D PSL 3/3G.

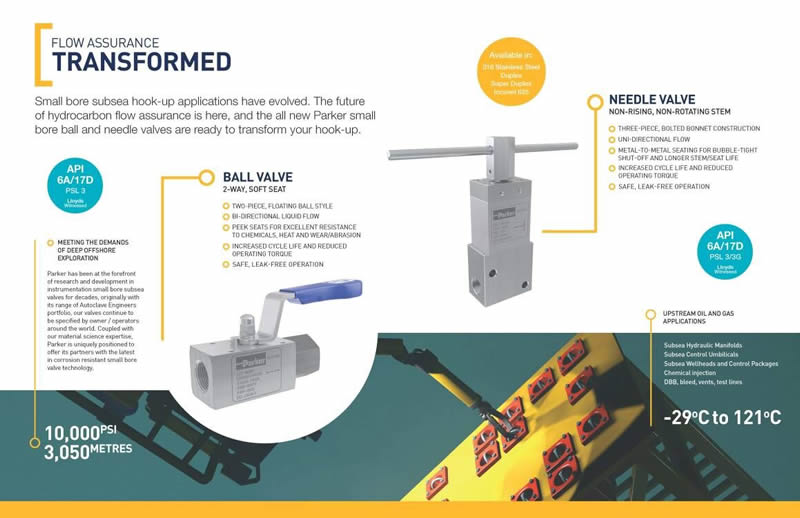

New Parker Subsea Small-Bore Valves deliver leak-free, long-term performance in oil and gas exploration and production

Barnstaple, UK. 28. May 2020 – Parker Hannifin, the global leader in motion and control technologies, has launched a new range of small-bore subsea ball valves and subsea needle valves for leak-free and reliable, long-term performance in subsea applications up to 10,000 PSI (689 bar) and depths down to 3,050 m (10,000 ft).

Developed by Parker Instrumentation Products Division, Europe (IPDE) in response to the increasing challenges of oil and gas subsea exploration and production, these subsea valves have the ability to withstand long-term corrosion effects from high salt content sea water and perform in extreme temperature and pressure conditions, making them ideal for regions such as offshore Brazil, Gulf of Mexico, North Sea, West Africa and Asia.

Parker’s small-bore subsea quarter turn ball valve, featuring floating ball design, utilises the same field-proven design technology as the standard Parker’s Hi-Pro series ball valve. This small-bore subsea ball valve design additionally incorporates shaft and end adaptor O-ring ingress seals, which prevent the ingress of sea water to any threaded or rotating parts of the valve.

The 2-way small-bore subsea ball valve design features PEEK self-relieving seat for excellent resistance to chemicals, heat, and wear/abrasion and PTFE packing for increased cycle life and reduced operating torque.

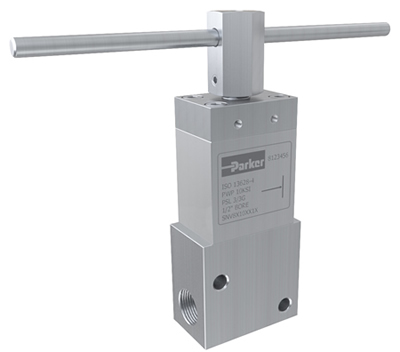

Parker’s non-rising, non-rotating stem subsea needle valve features metal-to-metal seat for bubble-tight shut-off, longer stem/seat life, greater durability for repeated on/off cycles and reinforced PTFE/PEEK chevron packing below stem threads for dependable stem and body sealing.

This subsea needle valve incorporates double O-ring stem ingress seals on bonnet housing to prevent water and silt ingress into the valve.

Franck Grignola, Parker IPDE subsea valves Product Manager, said: “Ensuring safe, leak-free and smooth operation in subsea conditions were the main priorities for us when developing these subsea valves. With owner / operators now having to go to deeper depths with increased pressure and temperatures, this range of small-bore subsea ball and needle valves meets the challenges the industry is facing. Coupled with our extensive expertise in material science, Parker is well placed to partner with engineering houses, OEMs and owner / operators”.

The subsea valves are available in a range of corrosion resistant alloys and a wide range of connections including cone-and-thread, buttweld and NPT.

Supplied with a handle or a paddle, the valves are designed to facilitate operation either manually or by a Remotely Operated Vehicle (ROV) as an option.

The valves have been designed to meet orexceed the rigorous qualification test requirements of API6A/17D PSL 3 (ball valves) and API6A/17D PSL 3/3G (needle valves) fortemperature classes P/V (-29oC to 121oC). The structural integrity and performance havebeen confirmed by independent third-party inspectors.

新型 Parker Subsea 小口徑閥門在石油和天然氣勘探和生產中提供無泄漏、長期性能

英國巴恩斯特普爾。 28. 2020 年 5 月 – 運動和控制技術的全球領導者派克漢尼汾推出了一系列新的小口徑海底球閥和海底針閥，可在高達 10,000 次的海底應用中實現無泄漏且可靠的長期性能PSI (689 bar)，深度低至 3,050 m (10,000 ft)。

這些海底閥門由歐洲派克儀表產品部 (IPDE) 開發，以應對日益嚴峻的石油和天然氣海底勘探和生產挑戰，能夠承受高鹽含量海水的長期腐蝕影響并在極端溫度下工作和壓力條件，使其成為巴西近海、墨西哥灣、北海、西非和亞洲等地區的理想選擇。

派克的小口徑海底四分之一回轉球閥采用浮球設計，采用與標準派克 Hi-Pro 系列球閥相同的經過現場驗證的設計技術。這種小口徑海底球閥設計還包含軸和端部適配器 O 形圈入口密封件，可防止海水進入閥門的任何螺紋或旋轉部件。

2 通小口徑海底球閥設計采用 PEEK 自卸式閥座，具有出色的耐化學性、耐熱性和耐磨性，PTFE 填料可延長循環壽命并降低操作扭矩。

派克的非上升、非旋轉閥桿海底針閥具有金屬對金屬閥座，可實現氣密關閉、更長的閥桿/閥座壽命、更耐用的重復開/關循環以及閥桿下方的增強 PTFE/PEEK 人字形填料螺紋用于可靠的閥桿和閥體密封。

這種海底針閥在閥蓋外殼上采用雙 O 形環閥桿入口密封件，以防止水和淤泥進入閥門。

派克 IPDE 海底閥門產品經理 Franck Grignola 說：“在開發這些海底閥門時，確保在海底條件下安全、無泄漏和平穩運行是我們的主要優先事項。隨著船東/運營商現在不得不隨著壓力和溫度的增加進入更深的深度，這一系列小口徑海底球閥和針閥可以應對行業面臨的挑戰。再加上我們在材料科學方面的廣泛專業知識，派克有能力與工程公司、原始設備制造商和業主/運營商合作”。

海底閥門有多種耐腐蝕合金和多種連接方式，包括錐螺紋、對焊和 NPT。

這些閥門配有手柄或槳葉，旨在促進手動操作或遠程操作車輛 (ROV) 作為選項進行操作。

這些閥門的設計滿足或超過 API6A/17D PSL 3（球閥）和 API6A/17D PSL 3/3G（針閥）對溫度等級 P/V（-29oC 至 121oC）的嚴格鑒定測試要求。結構完整性和性能已得到獨立第三方檢查員的確認。

Autoclave海底球閥 (1.379bar) 壓力等級20,000psi
尺寸: 3/16~，1/4~，3/8~，1/2~和1英寸
用于海底操作的高壓球閥，水深12,500英尺(3810米)

二通6.35m節流口徑型號: S2B4S15L2，S2B4S15L4，S2B4S15L6，S2B4S10L8，S2B4S20K4，S2B4S20M6，S2B4S20，S2B4S20H4，S2B4S20H6，S2B4S20H9，S2B4S15P2，S2B4S15P4，S2B4S15P6.S2B4S15P8
二通9.52m節流口徑型號: S2B6S10L8，S2B6S206，S2B6S20，S2B6S20M12，S2B6S15P4,S2B6S15P6， S2B6S15P8
二通12.7mm節流口徑型號: S2B8S15M12，S2B8S15M16，S2B8S10P12，S2B8S10P16
二通4.77m節流口徑型號: S3B3S15M4，S3BD3S15M4，S3B3S15M6，S3BD3S15M6，S3B3S15M9,S3BD3S15M3，S3B3S15H4S3BD3S15H4， S3B3S15H6，S3BD3S15H6，S3B3S15P4，S3BD3S15P4，S3B3S15P6，S3BD3S15P6二通8.33n節流口徑型號: S3B6S10L8，S3BD6S10L8，S3B6S106，S3BD6S10M6，S3B6S10M9，S3BD6S10M9，S3B6S10M12,S3BD6S10M12，S3B6S10P4，S3BD6S10P4，S3B6S10P6，S3BD6S10P6，S3B6S10P8，S3BD6S10P8
二通12.7m節流口徑型號: S3B8S10M12，S3BD8S10M12，S3E8S10M16，S3BD8S10M16，S3B8S10P12，S3BD8S10P12，S3B8S10P16.S3BD8S10P16
